LONROY 15kW Water-Cooled Optical Collector Water Cooling Light Collector Lab High Power Water-Cooled Light Integrating Collector

Large Image : LONROY 15kW Water-Cooled Optical Collector Water Cooling Light Collector Lab High Power Water-Cooled Light Integrating Collector

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

LONROY 15kW Water-Cooled Optical Collector Water Cooling Light Collector Lab High Power Water-Cooled Light Integrating Collector

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Maximum Absorbed Power (kW):	15
Highlight:	15kW water-cooled optical collector , high power water-cooled light collector , lab water-cooled integrating collector

LONROY 15kW Water-Cooled Optical Collector Water Cooling Light Collector Lab High Power Water-Cooled Light Integrating Collector

Product Overview

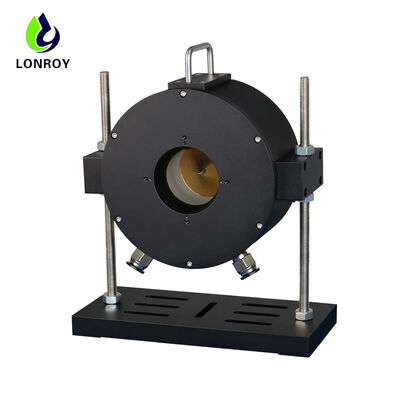

The LR-TW15K optical collector probe is suitable for measuring high-power-density lasers, with a maximum absorption power of up to 15 kW in water-cooled mode and an aperture diameter of 55 mm.

Feature

1. Water-cooling mode

2. 55mm light-absorbing aperture

3. High power density

4. The maximum absorption power can reach 15kW

LONROY 15kW Water-Cooled Optical Collector Water Cooling Light Collector Lab High Power Water-Cooled Light Integrating Collector

Technical Specification

Model	LR-TW15K
Spectral range (μm)	0.8 - 25
Maximum absorbed power (kW)	15
Absorber type	PT
Absorber aperture (mm)	55
Damage threshold
Maximum average power Density	6kW/cm²
Incident requirements for an incident laser beam	Avoiding damage to the laser power sensor, the following requirements are put forward for the irradiation position and tilt angle of the incident laser beam: The incident laser beam should be irradiated on the center of the detection port, and the maximum position offset should not exceed 1/4 of the beam diameter. The maximum tilt angle of the incident laser beam is ±5 degrees.
Physical characteristics

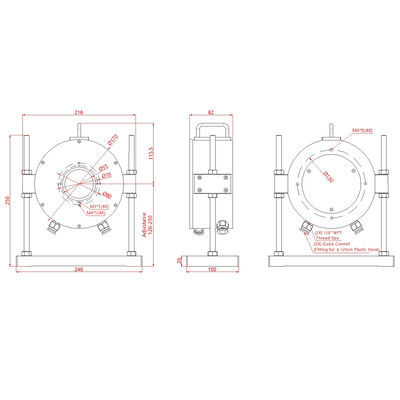

Dimensions(mm)	170 × 82
Cooling method	Water Cooled
Cooling water flow(L/min)	8 - 15
