LONROY 300mW-300W Large Aperture Laser Power Sensor Air Cooled Laser Power Meter Detector Laser Power Testing Instrument

Large Image : LONROY 300mW-300W Large Aperture Laser Power Sensor Air Cooled Laser Power Meter Detector Laser Power Testing Instrument

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

LONROY 300mW-300W Large Aperture Laser Power Sensor Air Cooled Laser Power Meter Detector Laser Power Testing Instrument

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Power Range:	300mW - 300W
Highlight:	large aperture laser power sensor , air cooled laser power meter , 300W laser power detector

LONROY 300mW-300W Large Aperture Laser Power Sensor Air Cooled Laser Power Meter Detector Laser Power Testing Instrument

Product Overview

The LR-C650 type thermocouple laser power meter probe is suitable for measuring continuous and pulsed lasers with high power density. In the natural air-cooling mode, the maximum continuous measurement power can reach 50W, and the maximum intermittent measurement power can reach 300W. It has a large detection aperture of 55mm.

Characteristics

1. Natural cooling

2. 65mm detection aperture

3. Single pulse energy testing function

4. USB interface output is optional for the PC version

5. The maximum intermittent measurement power can reach up to 300W within 1 minute.

LONROY 300mW-300W Large Aperture Laser Power Sensor Air Cooled Laser Power Meter Detector Laser Power Testing Instrument

Technical Specification

Model	LR-C650
Spectral range (μm)	0.19 - 25
Power range	300mW - 300W
Intermittent measurement power	50W(Cont.), 150W (6min), 300W (2min)
Measurement Capability
Resolution(mW)	15
Measurement uncertainty (±%)	< 1
Nonlinearity with power (±%)	< 1
Power accuracy (±%)	< 3
Response time(s)	< 4
Detector type	CB
Detector aperture(mm)	65
Maximum average power Density	20kW/cm2, 10W, CW
Maximum energy density	0.3J/cm2, 1ns, 1064nm

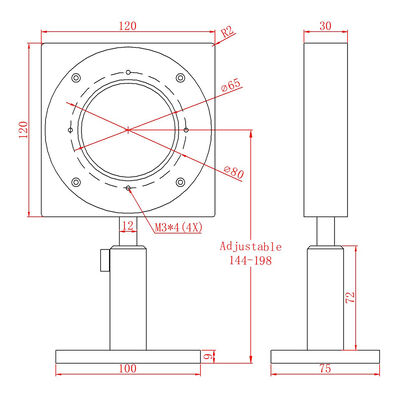

Physical characteristics
Dimensions(mm)	120 × 120 × 30
Cooling method	Air cooled
Interface type	DB-9M
Cable length(m)	1.5
