LONROY 500mW-500W High Damage Threshold Laser Power Probe Water-cooling Full Beam Collection Laser Power Meter Detector Head

Large Image : LONROY 500mW-500W High Damage Threshold Laser Power Probe Water-cooling Full Beam Collection Laser Power Meter Detector Head

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

LONROY 500mW-500W High Damage Threshold Laser Power Probe Water-cooling Full Beam Collection Laser Power Meter Detector Head

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year
Highlight:	water-cooling laser power meter , high damage threshold laser probe , full beam collection detector head

LONROY 500mW-500W High Damage Threshold Laser Power Probe Water-cooling Full Beam Collection Laser Power Meter Detector Head

Product Overview

The LR-W500 type laser power meter probe is suitable for measuring continuous and pulsed lasers with small light spots, high power density and high energy density. The water-cooled model can achieve a maximum continuous measurement power of up to 500W.

Characteristics

· Water-cooling mode

· 35mm detection aperture

· Single pulse energy testing function

· USB interface output is optional for the PC version

· The maximum continuous measurement power can reach 500W

LONROY 500mW-500W High Damage Threshold Laser Power Probe Water-cooling Full Beam Collection Laser Power Meter Detector Head

Technical Specification

Model	LR-W500
Spectral range(μm)	0.24 - 2.2
Power range(W)	0.5 - 500
Measurement capability
Resolution(mW)	20
Measurement uncertainty(±%)	< 1
Nonlinearity with power(±%)	< 1.5
Power accuracy(±%)	< 3
Response time(s)	< 3
Detector type	DC
Detector aperture(mm)	35
Damage threshold
Maximum average power density	100kW/cm², 10W, CW
Maximum energy density	1.0J/cm², 1064nm, 1ns

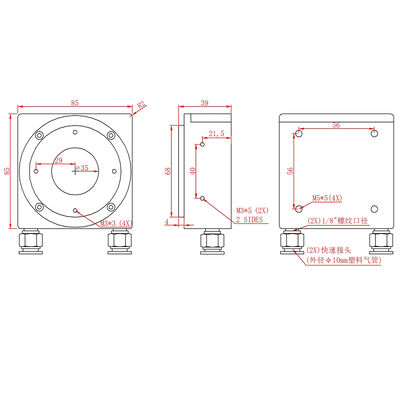

Physical characteristics
Dimensions(mm)	85 × 85 × 39
Cooling method	Water cooled
Cooling water flow(L/min)	3 - 10
Interface type	DB-9M
Cable length(m)	1.5
