 Product Introduction

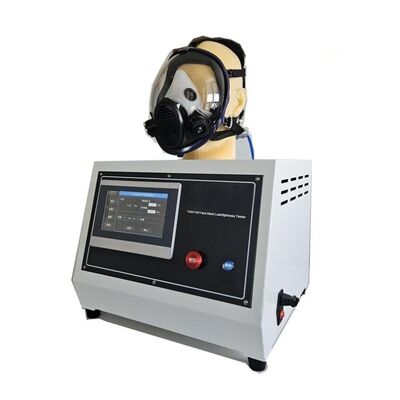

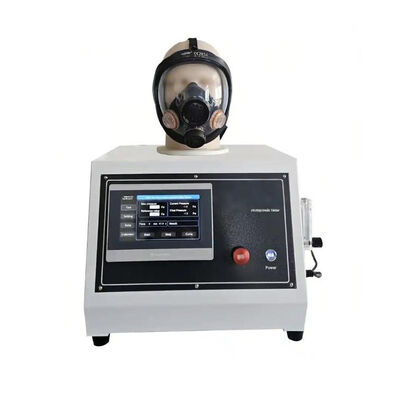

This equipment is used for the airtightness test of full-face masks. During the test, the mask is worn on the silicone head mold and the inhalation valve is sealed. The pneumatic vacuum pump causes the pressure inside the mask to reach -1000 Pa. The pumping stops and the timing begins. The pressure change value of the mask within 60 seconds is observed and recorded.

Compliant with the standards

GB 2626-2019 6.14 Air tightness

GB 2890-2022 6.15 Overall air tightness of the full face mask EN 136

Product features

1.Inhaled miniature vacuum pump, with low noise and stable airflow.

2.High-precision flowmeter, providing accurate test flow rate.

3.High-resolution differential pressure sensor with digital display function.

4.Standard-sized silicone head mold, with high adhesion.

5.Supports display of pressure curve within the mask.

Standard configuration

1. One main unit;

2. One medium-sized standard head mold in GB2626;

Optional:

3. One large-sized standard head mold in GB2626;

4. One small-sized standard head mold in GB2626;

5. One medium-sized head mold in European standard ISO 16900-5;

EN 136 ISO 16900 Full-face Mask Airtightness Tester Full Face Mask Air Tightness Test Machine Face Respirator Air Leak Analyzer

Technical Specification
