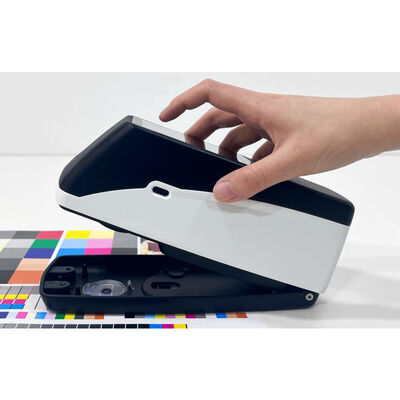

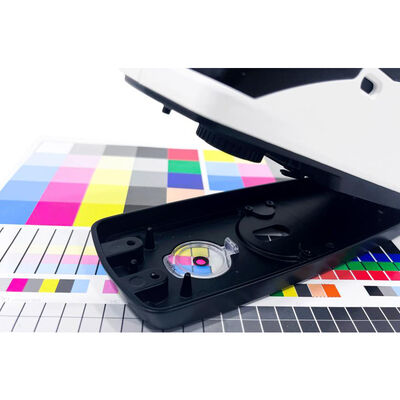

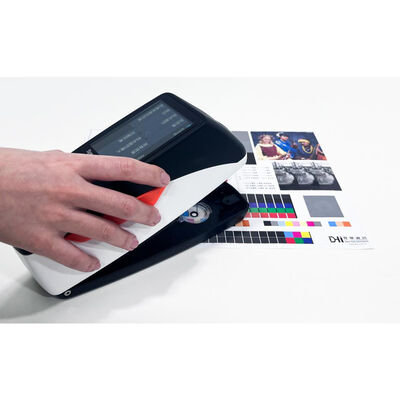

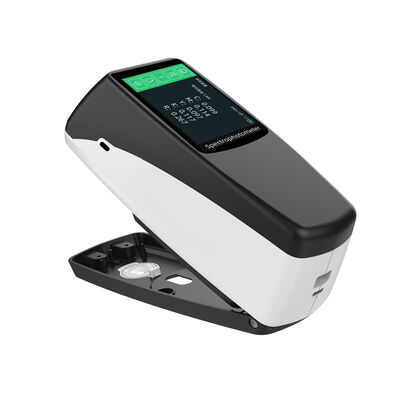

LONROY ISO 13655 ISO 5-4 CHNSpec EX Series Handheld Printing Densitometer Spectrophotometer CMYK Graphic Press Density Meter

Large Image : LONROY ISO 13655 ISO 5-4 CHNSpec EX Series Handheld Printing Densitometer Spectrophotometer CMYK Graphic Press Density Meter

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

LONROY ISO 13655 ISO 5-4 CHNSpec EX Series Handheld Printing Densitometer Spectrophotometer CMYK Graphic Press Density Meter

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year
Highlight:	handheld printing densitometer spectrophotometer , CMYK graphic press density meter , ISO 13655 compliant densitometer

LONROY ISO 13655 ISO 5-4 CHNSpec EX Series Handheld Printing Densitometer Spectrophotometer CMYK Graphic Press Density Meter

Product Overview

The CHNSpec EX series of handheld printing densitometers are designed specifically for the printing industry. They can accurately measure the color density of various printing processes such as offset printing and gravure printing, quickly obtain data, and help practitioners effectively control color quality and correct deviations in a timely manner. Its handheld design is lightweight and easy to carry, and can provide reliable color management support anytime and anywhere to ensure the consistency of printed colors.

Product Features

1. Ultra-high repeatability: density value: ≤0.001D, chromaticity value: dE*ab≤0.03

2. Horizontal press measurement, physically positioned observation window

3. Provide printing-specific measurement indicators to help users efficiently adjust colors

4. Dual-caliber design to meet the measurement of samples of different sizes

5. Use the powerful PC-side color management system ColorExpert

6. More than 30 measurement parameters and more than 30 evaluation light sources

7. Support connection to mobile APP, WeChat applet

Model classification table

Model	Parameter	Difference between stations	Applicable situations
Printing Densitometer EX SE	Color density CMYK+ printing index	dE*ab≤0.3	It is suitable for printing production process control, quality inspection and evaluation, etc., which require precise control and detection of printing color density.
Printing Densitometer EX PRO	Color density CMYK + printing index + some color index (without reflectivity, whiteness, yellowness)	dE*ab≤0.3	Strictly implement process control industry standards, accurately control CMYK four-color and spot color printing processes, and ensure accurate color presentation.
Printing Densitometer EX MAX	Color density CMYK+printing index+all color parameters	dE*ab≤0.25	Providing a comprehensive toolset for ink labs, quality control labs and manufacturing partners to ensure they achieve high-quality print results.

LONROY ISO 13655 ISO 5-4 CHNSpec EX Series Handheld Printing Densitometer Spectrophotometer CMYK Graphic Press Density Meter

Technical Specification

Model	Printing Densitometer EX SE	Printing Densitometer EX Pro	Printing Densitometer EX MAX
Measuring/illumination aperture	Φ2mm/5mm,Φ1.5mm/3mm
Battery capacity	Single charge can measure 8000 times continuously, 7.2V/3000mAh
Interface	USB, Bluetooth
Density range	0.0 D – 3.0 D
Density Standard	Status A, E, I, T ,M
Comply with standards	ISO 5-4:2009(E), ISO 13655:2017,CIE No.15
Instrument Display	Full color screen, 3.5 inches
Supported languages	Simplified Chinese,English
Lighting source	Full-band balanced LED light source + UV
Measurement Mode	M0, M1, M2, M3
Measurement structure*	45/0
Measuring time	About 1.5 seconds
Measurement repeatability**	Density value: ≤0.001D, chromaticity value: dE*ab≤0.03
Wavelength interval	10nm
Wavelength range	400-700nm
Light source life	1 million times in 10 years
Storage	Instrument: 100 standard samples, 10,000 test samples; APP: Massive storage
Spectral method	Grating
Sensors	Dual-row high-precision CMOS array sensor
Reflectivity measurement range	0-200%
Reflectivity resolution	0.01%
Software Support	Android, iOS, Windows, WeChat Mini Program
Accuracy Guarantee	Ensure first-level measurement qualification
Inter instrument agreement ***	dE*ab≤0.3		dE*ab≤0.25
Display accuracy	Density value: 0.001, Chroma value: 0.01
Viewer angle	2°,10°
Measuring indicators	-	CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (ΔEab, ΔEcmc, ΔE94, ΔE00), blackness (My, dM), staining fastness, color fastness, Tint (ASTM E313-00), color density CMYK (A, T, E, M), metamerism index Milm, Munsell, Opacity , strength (dye strength, tinting strength)	Spectral reflectance, CIE-Lab, CIE-LCh, HunterLab, CIE-Luv, XYZ, Yxy, RGB, color difference (ΔEab, ΔEcmc, ΔE94, ΔE00), whiteness (ASTM E313-00, ASTM E313-73, CIE, ISO2470/R457, AATCC, Hunter, Taube Berger Stensby), yellowness (ASTM D1925, ASTM E313-00, ASTM E313-73), blackness (My, dM), staining fastness, color fastness, Tint (ASTM E313-00), color density CMYK (A, T, E, M), metamerism index Milm, Munsell, Opacity, strength (dye strength, tinting strength)
Printing quality indicators	Spot Color Density,Color density CMYK (A, T, E, M), dot area, dot area gain, overprint rate, printing contrast, grayscale, hue error
Lighting conditions	A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1, LED-V2
