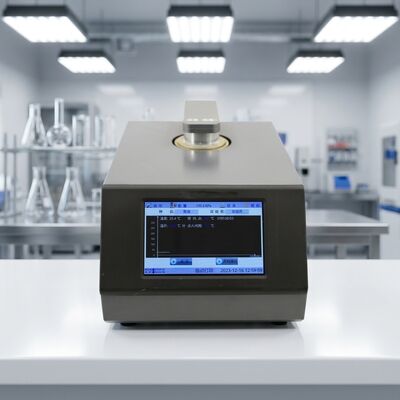

LONROY ASTM D6450 ASTM D7094 Micro Rapid Flash Point Tester Oil Samples Diesel Microscopic Fast Flash Point Testing Machine
Introduction
The LR-A001 micro-fast flash point tester is suitable for all oil samples that need to be tested for closed flash point, including transformer oil, insulating oil, and diesel.
Compliance standards
SH/T 0768, ASTM D6450, ASTM D7094, DL/T 1354
Instrument Features
1. 5-inch color capacitive touch display screen;
2. Information storage uses an embedded file system and data can be exported via USB drive;
3. Ignition inside the test chamber, no open flame, no safety hazards. Laboratory use does not require it to be conducted in a fume hood;
4. Integrated portable design of the host, integrated software, hardware, display input and communication system. Can be used for laboratory testing or on-site operations;
5. Forced air cooling, rapid temperature reduction;
6. The critical value of flash point detection pressure can be adjusted.

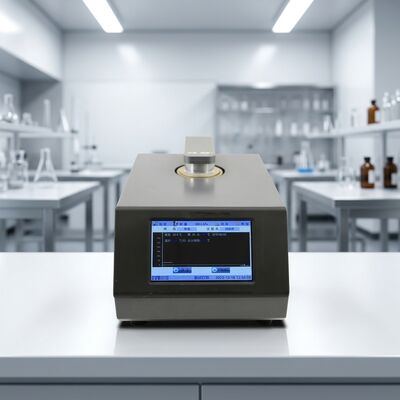

LONROY ASTM D6450 ASTM D7094 Micro Rapid Flash Point Tester Oil Samples Diesel Microscopic Fast Flash Point Testing Machine
Technical Specification
|
Temperature range |
Room temperature - 300℃ |
|
Temperature resolution |
0.1℃ |
|
Temperature rise rate |
Adjustable from 0.1℃ to 20℃/min |
|
Ignition method |
Arc ignition |
|
Ignition temperature interval |
Adjustable from 0.1℃ to 10℃ |
|
Sample injection volume |
1ml or 2ml |
|
Measurement error |
Reproducibility: ±1.5℃; Repeatability: ±3.0℃ |
|
Air pressure detection range |
30kPa - 260kPa |
|
Flash point value |
Automatic correction function |
|
AC power supply |
220V ± 10% / 110V ± 10%; Total power approx. 240W |
|
Field portable power supply |
24V DC, 10A |
|
Communication interface |
WIFI, RS232 (optional) |
|
Overall dimensions |
290mm × 188mm × 172mm (L × W × H) |
|
Instrument weight |
4kg |
![]()
![]()
![]()
![]()
