Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment

Large Image : Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Dimensions Of Test Platform:	36803000300mm, Net Span Space: 2500mm
Highlight:	rail clip fastener testing machine , fatigue life test equipment , track slab durability tester

LONROY Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment

Product Introduction

The dynamic and static stiffness test system for rail transit fastening components is mainly used for testing the dynamic and static stiffness of rail transit fastening components such as plate-type rail fasteners and rail fasteners, as well as conducting fatigue life tests.

LONROY Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment

Technical Specification

Dimensions of test platform	36803000300mm, net span space: 2500mm
Total height of gantry frame	3000mm
Adjustable height range of crossbeam	1000mm ~ 3000mm
Maximum test force of actuator	250 kN
Test force indication accuracy	±1.0% (1kN ~ 5kN); ±0.5% (5kN ~ 250kN)
Actuator stroke & stroke indication accuracy	±125mm, indication accuracy: ±0.5%
Servo pump station parameters	Flow rate: 525 L/min, pressure: 21 MPa, motor: 75 kW × 3
Frequency range & amplitude parameter	0.01 - 35 Hz, amplitude ±3 mm at 10 Hz
Measuring range of dynamic displacement sensor	10mm
Main test waveforms	sine wave, positive deflection wave, negative deflection wave, triangular wave, square wave, sawtooth wave, pulse wave, ramp wave

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748

Other Products

ISO 12156 Contact Fatigue Wear Testing Equipment 5KW Tumble Test Machine with 1 to 2000 RPM and ±0.5% Speed Control Accuracy

Load range: 80N--30000N

Load display error: ±1%

Long-term load error: ±1%

Motor power: 5KW

Reciprocating Friction Test Machine with 0 - 10Hz Repetitive Frequency 800N Maximum Test Force and 0 - 20mm Repetitive Stroke

Maximum test force: 800N ±1%

Repetitive frequency: 0 - 10 Hz

Repetitive stroke: 0 - 20 mm

Test temperature: Room temp to 1200℃ ±2℃

Pin-disk Tribometer 220V 50Hz Friction and Wear Testing Machine with 1N.m Maximum Friction Torque and ±2% Measurement Accuracy

Maximum friction torque: 1N.m

Friction torque accuracy: ±2%

Pin specimen diameter: 4mm optional

Maximum load: 30Kg

ASTM Lab Test Machine 3000N Maximum Test Force Ring Block Tester with ±1% Friction Force Accuracy and Servo Fully Automatic Loading

Maximum test force: 3000N

Maximum friction force: 300N

Friction force accuracy: ±1%

Test force accuracy: ±0.5%

Timken Analyzer Ring Block Wear Testing Machine with 3000N Maximum Test Force ±1% Accuracy and ±2% Spindle Speed Error

Test force accuracy: ±1%

Maximum friction force: 300N

Spindle speed error: ±2%

Display range: 0-9999999

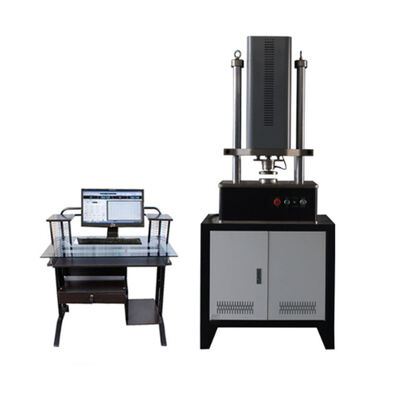

Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment

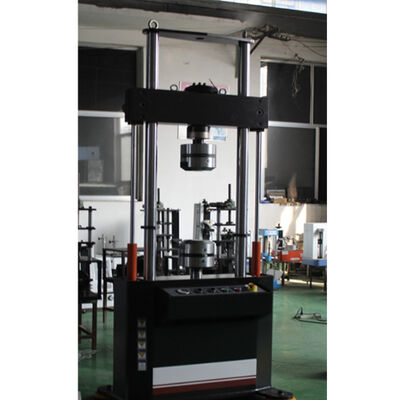

Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment

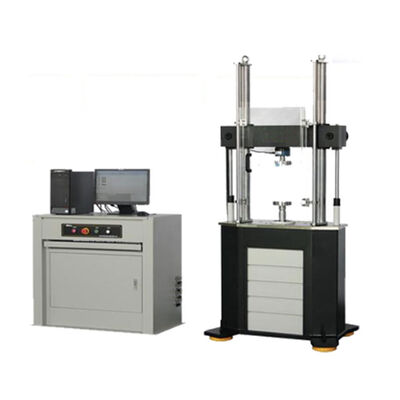

Rail Clip Fastener Fatigue Life Testing Machine Pad Durability Tester Press Plate Track Slab Fatigue Resistance Test Equipment
