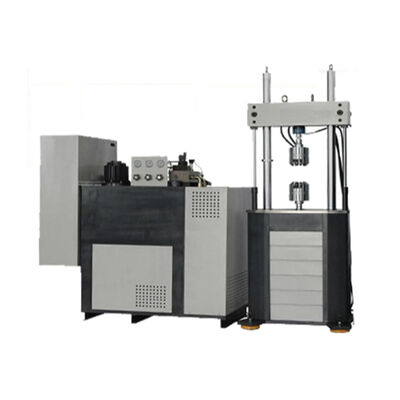

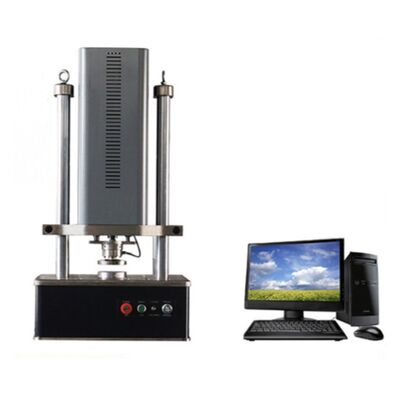

Dual-arm Window Regulator Durability and Fatigue Testing Machine Glass Regulator Fatigue Strength Tester Fatigue Life Test Bench

Maximum dynamic test force

±100KN

Amplitude fluctuation

Not exceeding ±1% F.S. for each range

Maximum actuator amplitude

±75 mm, indication accuracy from 2% to ±1% FS

Deformation measurement accuracy

Indication accuracy from 2%, ±0.5% FS

Frequency range

0 to 50 Hz

Main test waveform

Sine wave, pulse wave, square wave, sawtooth wave, random wave (mainly supported by the controller)

Maximum linear velocity in dynamic testing

50mm/s

Number of fatigue cycles

2×1000000 times (arbitrary setting)

Maximum test space (from the top surface of the actuator to the bottom surface of the load sensor)

Not less than 1200 mm

Column spacing

533mm

Constant Pressure Servo Pump Station - Flow rate & Pressure

52 L/min, 21 MPa

Workbench effective height

920mm

Test Fixture

Hydraulic Stretching Fixture

Rack stiffness

2.6 × 100000000 N/m

External Dimensions

1100 mm (length) × 900 mm (width) × 3200 mm (height)

Total weight

Approximately 1,600 kg
