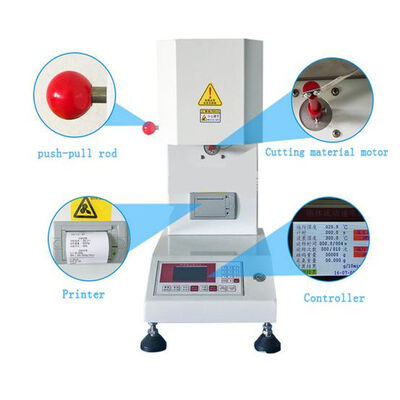

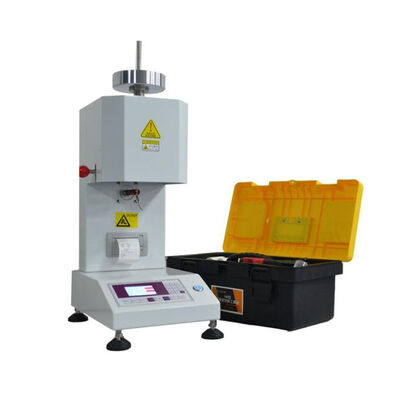

ISO 1133 ASTM D1238 Melt Flow Rate Testing Instrument Plastic Materials Melt Volume Flow Rate Tester MFR Analyzer MVR Tester

Model

LR-A001-A

Barrel parameters

Inner hole 9.550±0.005mm

Pistons parameters

Piston head:   9.474±0.005mm

Outlet length

8.000±0.025mm

Paramters

Extrusion hole 1=2.095±0.005mm

Temperature parameter

With   intelligent   temperature   control   instrument,   with   four   pairs   of significant   temperature    setting    control,    PID    parameters   can   be automatically set, precision up to ± 0.1 degree centigrade

Temperature range

Room Temperature~450degree centigrade

Temperature fluctuation

±0.2 ℃

Temperature uniformity

±1℃

Temperature display resolution

0.1 ℃

Display resolution

0.1 ℃

Maximum comsuption

< 600W

Time display resolution

0.1s

Weight parameters are as follows:

Weight accuracy

±0.5%

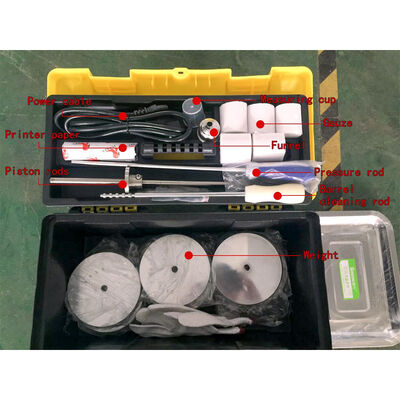

Basic configuration

A       0.325kg

B        1.2kg

C       2.16kg

D       3.8kg

E         5kg

F          10kg

G       12.5kg

H         21.6kg

Position detection

Loop   distance   from   up   and down

30mm

Control precision

± 0.1mm

Test flow control

Times of cutting the material

0~ 10 times

Material cutting interval

0~999s(set reference Table 2)

Control flow reaches the set temperature without volatility

Output mode

Micro-automatic print output

Cut material methods

The hand automatic cut into one body

Test load

Eight sets of weights

Power

AC220V±10%    50/60HZ
