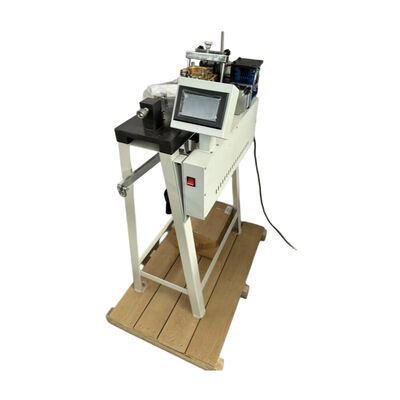

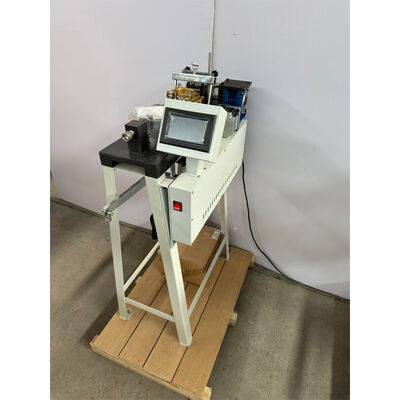

Electric Strain-Controlled Direct Shear Testing Equipment Soil Shear Strength Tester Laboratory Soil Cohesion Test Machine

Electric Strain-Controlled Direct Shear Testing Equipment Soil Shear Strength Tester Laboratory Soil Cohesion Test Machine

Description

Our company's electric direct shear tester is used to determine the shear strength of soil. It features a high-resolution color screen display and intelligent microcomputer control, achieving automated operation, convenient operation, high accuracy, stable speed, reliable performance, and an attractive appearance. The instrument uses a high-performance servo motor as the drive source, greatly reducing vibration. The electric shearing rate is selectable and can be quickly changed. It is easy to use, durable, and has an automatic stop mechanism. Key features include: the transmission method has been changed from the original DC servo motor to a compact stepper motor; the motor power supply has been changed from the original 220V to a safe 24V voltage; and the lever force point has been improved from the original knife-edge type to a bearing type. This instrument is safer, more sensitive, more compact, more applicable, and quieter than previous versions. Therefore, the use of this instrument lays a good foundation for laboratory automation.

This instrument is mainly used to determine the shear strength of soil. Shear stress at failure was determined by applying horizontal forces under different vertical pressures (400 kPa, 300 kPa, 200 kPa, 100 kPa, 50 kPa selectable). Then, the shear strength parameters, internal friction angle, and cohesion of the soil were determined according to Coulomb's law.

Standards

GB/T50123-2019

JTG E40-2007 (T0140-1993/T0141-1993/T0142-1993/0143-1993/T0176-2007)

IElectric Strain-Controlled Direct Shear Testing Equipment Soil Shear Strength Tester Laboratory Soil Cohesion Test Machine

Technical Specification
