ASTM D3080 BS 1377 Strain-Controlled Direct Shear Tester Soil Shear Strength Testing Machine Soil Shear Strength Test Equipment

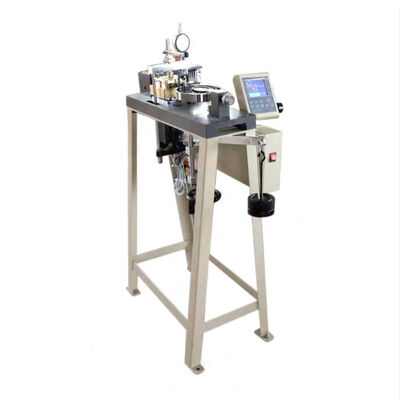

Large Image : ASTM D3080 BS 1377 Strain-Controlled Direct Shear Tester Soil Shear Strength Testing Machine Soil Shear Strength Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ASTM D3080 BS 1377 Strain-Controlled Direct Shear Tester Soil Shear Strength Testing Machine Soil Shear Strength Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Weight:	60 Kg
Dimension:	850 * 550 * 1100 Mm (LWH)
Highlight:	ASTM D3080 soil shear tester , BS 1377 direct shear test machine , strain-controlled soil strength equipment

ASTM D3080 BS 1377 Strain-Controlled Direct Shear Tester Soil Shear Strength Testing Machine Soil Shear Strength Test Equipment

Standards Meet

ASTM D3080, BS 1377:7, AASHTO T236 NF P094071-1/2

Direct Shear Test Apparatus

Precise soil testing for geotechnical studies.

High Accuracy

Ensures reliable and consistent test results.

1 Year Warranty

Peace of mind with extended coverage.

Customizable

Supports OEM options for tailored solutions.

IASTM D3080 BS 1377 Strain-Controlled Direct Shear Tester Soil Shear Strength Testing Machine Soil Shear Strength Test Equipment

Technical Specification

Model	LR-G500
Max vertical load	400 kPa
Vertical load	50 kPa, 100 kPa, 200 kPa, 300 kPa, 400 kPa
Corresponding weight	1.275 kg, 2.55 kg, 5.1 kg, 7.65 kg, 10.2 kg
Lever ratio	1:12
Level shear force	Max. 1.2 kN
Sample area	30 cm², height 2 cm
Shear rate	0.02 mm/min, 0.8 mm/min, 2.4 mm/min
Power source	220 V ±10%, 50 Hz
Dimension	850 × 550 × 1100 mm (L×W×H)
Weight	60 kg

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
