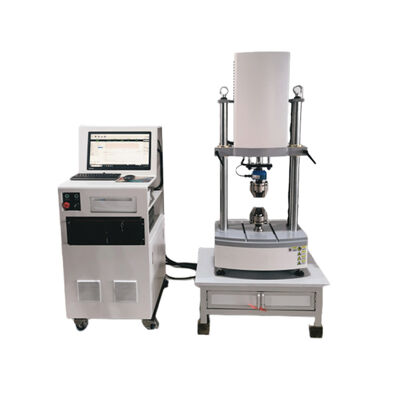

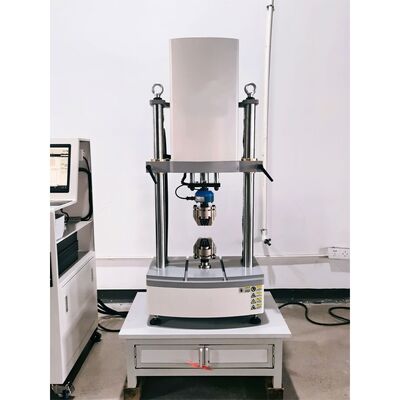

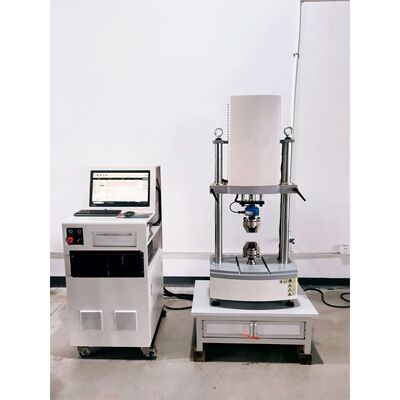

Electronic Fatigue Tester Rubber Metal Material Compression Bending Fatigue Testing Machine Mechanical Properties Test Device

Large Image : Electronic Fatigue Tester Rubber Metal Material Compression Bending Fatigue Testing Machine Mechanical Properties Test Device

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Electronic Fatigue Tester Rubber Metal Material Compression Bending Fatigue Testing Machine Mechanical Properties Test Device

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Main Unit Dimensions:	Approximately 610mm * 400mm * 1600mm
Total Weight:	Approximately 350kg
Highlight:	Electronic fatigue tester for rubber , Metal material compression testing machine , Bending fatigue test device mechanical properties

Electronic Fatigue Tester Rubber Metal Material Compression Bending Fatigue Testing Machine Mechanical Properties Test Device

Machine Description

The electronic fatigue testing machine is mainly used to test various rubber and plastic materials, biomedical materials, as well as small metal materials and parts.

The static and dynamic mechanical properties of the component. It can achieve static tests such as tension, compression, and bending, as well as high cycle fatigue, low cycle fatigue, crack propagation, fracture mechanics, and other tests. It can load various waveforms such as sine wave, triangular wave, square wave, trapezoidal wave, etc. Configuring high-temperature furnaces, high and low temperature chambers, and corrosion chambers can achieve mechanical performance testing in different environments.

VElectronic Fatigue Tester Rubber Metal Material Compression Bending Fatigue Testing Machine Mechanical Properties Test Device

Technical Specification

Maximum test force	5kN
Effective measurement range of experimental force	1% -100% FS
Experimental force resolution	1/250000 of full scale (no gear division, constant resolution throughout the process)
Accuracy of test force indication	Within ± 0.5%
Displacement measurement range	0-100 (± 50mm)
Displacement measurement resolution	0.001mm
Relative error of displacement measurement indication	Within ± 0.5%
Electric cylinder stroke	100mm
Test frequency	0.01-5Hz (Test frequency is inversely proportional to amplitude)
Experimental waveforms	Sine wave, triangular wave, square wave, etc.
Maximum test space (without fixture installation)	Approximately 655mm
Main unit dimensions	Approximately 610mm × 400mm × 1600mm
Total weight	Approximately 350kg
