Skyray Explorer 7000 PLUS Handheld XRF Ore Mineral Soil Heavy Metal Analyzer XRF Ore Tester Geological Ore Mineral Test Machine
Description
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
/
Application:
Auto Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
Ip56
Voltage:
220 V
Warranty:
1 Year
Detector:
SDD Detector Or Fast-SDD Detector (optional) (Import From USA)
Highlight:
Handheld XRF ore analyzer
,
Mineral soil metal tester
,
Geological XRF test machine
Skyray Explorer 7000 PLUS Handheld XRF Ore Mineral Soil Heavy Metal Analyzer XRF Ore Tester Geological Ore Mineral Test Machine
Application advantage of geology and mineral resources
Our new generation XRF handheld ore analyzer -- Explorer 7000 plus is bringing arevolution in analytical field. Explorer 7000 plus introduces newer digital multi-channel technology.lower detection limits, better stability, and wider applied range, it has comparable performance withbench top; its small and convertible size makes the works ofgeological ore prospecting, multielemental detection exploration analysis, refining slag more simply and easier.
HD camera function, observes the detected vein and point position more intuitive, manages and controls the process of mining exploitation better, detects the grade of ore at any time.During ore dressing, the quick and accurate analysis of raw ore, concentrate and tailings , provides the value judgment basis for the determination of ore grade, mineral trade, processing and recycling
Environmental monitoring
To monitor and detect the heavy metals in the soil around the mines, to evaluate mine repair environments, in order to maximize the monitoring the surrounding environment of good mines.
Sixadvantages
Easier Operating
Light weight,small size,ergonomic handle design,equipped with a special instrument case, which is easier to grasp and more convenient to use in the field.
5 inch high-definition screen with 360 degree rotation, multiple points operating, can display clearly at any lights.
Integrated design of Seal type, with waterproof and dustproof function, can be used continuously in harsh environments
No need for sample preparation,can directly measure and analysis the surface of goods which need to tested. The instrument can do a quick measurement by its handheld benefit and accurately test the samples for a long time by its test block.
Better Performance
Rapid nondestructive detection and quick measurement by aiming,report results within one second. The performance is comparable to the bench-top's performance and detection result is fast and accurate.
Simultaneous detection of Ti,V,Cr,Mn,Fe,Co,Ni,Cu,Zn,Ga,Ge,Zr,Nb,Mo,Ru, Rh,Pd,Ag,In,Sn,Sb,Hf,Ta,W,Re,Pt,Au,Pb,Bi,Mg,Al,Si,P,S,and it can add elements that customized for customer's needs.
Instrument can run without helium by the ultra near optical path design, and can detect the light elements from the beginning of Mg that fully meets the needs of specific users.
Skyray Explorer 7000 PLUS Handheld XRF Ore Mineral Soil Heavy Metal Analyzer XRF Ore Tester Geological Ore Mineral Test Machine
Technical Specification
Analytical Method
Energy dispersive x ray fluorescence analytical Method
Elements Measuring
Range
Atomic number from 12 to 92 [elements from magnesium (Mg) to uranium (U)] can be measured
Simultaneous detector elements
Simultaneous analyze 40 elements
Microcomputer system
Customized system; CPU: 1G ; system memory: 1G ; extended stored maximum support 32G ; standard 4G for mass storage data
The content range
ppm~99.99%
The detection time
1~60 seconds(one second report results)
A built-in system
GPS, WIFI, Bluetooth
Power Supply
Rechargeable lithium battery, standard is 9000mAh, sustainable work up to 12 hours; optional is 27000mAh superbattery with wide voltage 110V~220V universal adapter for recharging power supply
Detection Objective
Solid, liquid, powder
Detector
SDD detector or Fast-SDD detector (optional) (Import from USA)
Detector resolution
Minimum can reach 128eV
The excitation source
50KV/200uA- siver target end window integrated miniature X-ray tube and high voltage power supply
Collimator and filte
collimator diameters are 4.0mm and 2.0mm, 6 kinds of filters with automatic switching functions
Video system
500W pixel high resolution camera

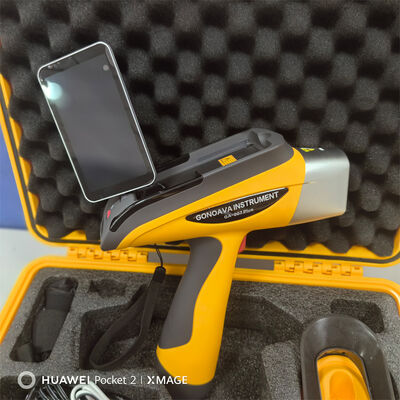

Display screen
Brand new 5 inch semi-reflecting and semi-transmitting LCD touch screen, its resolution is 1080*720.
Detection limit
The minimum detection limits at 1~ 500 ppm
Safety
Multiple safety protection, no tests, no radiation, radiation levels at work are far below the international safety standards and has no sample telemetry, automatic -turn -off X-Ray tube function. Standard radiation shields, thickened instrument's alloy testing wal
Specialty

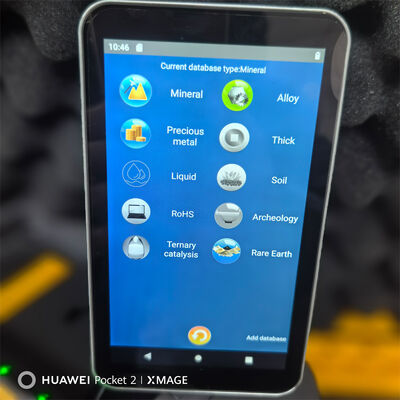

Special edition of ore's analytical software, and intellectualized one- key- testing.
Convenience of application
No need to select curves, intellectualized one- key-selecting will select the best matching curve
Data transmission
Digital multi-channel technology, SPI data transmission, quick analysis, the high count rate; waterproof mini USB, and can be connected witn a aesktop computer
Operating ambient humidity
≤90%
Operating environmental emperature
-20℃~+50℃
nstrument dimension
244mm(Length)x90mm(Width)x330mm(Height)
Instrument weight
1.7Kg
Intelligent warning
signalsindicator systen
Green light means power on, red flushing means testing and yellow flushing means the errors

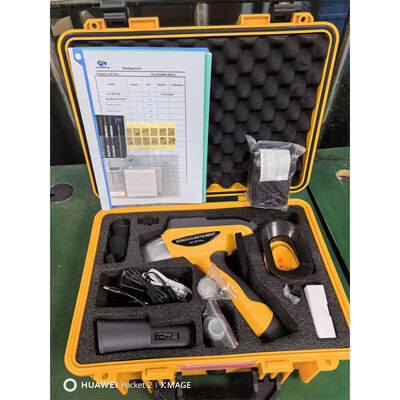

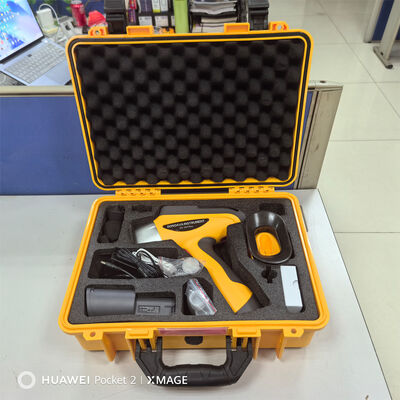

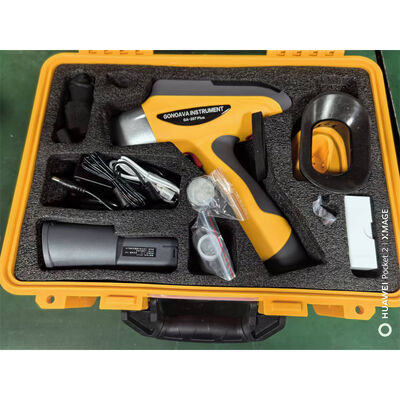

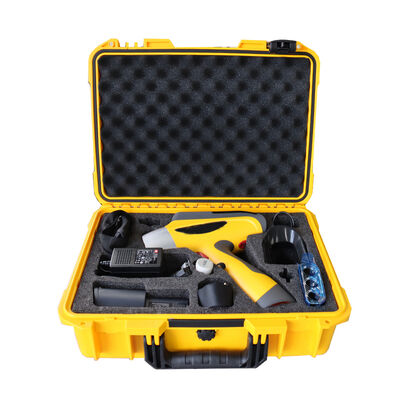

Accessories
Three-military-protection-box is compression, waterproof and shock absorption. Universal charger and car charger,4G
SD memory card and card reader
Two lithium battery and charger, PDA accessories, radiation shield. Optional accessories: the large battery, seat type test support, Bluetooth printer, mill, manual pressure machine, and different meshes of sieves
