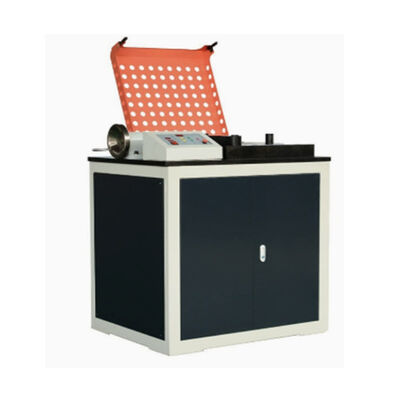

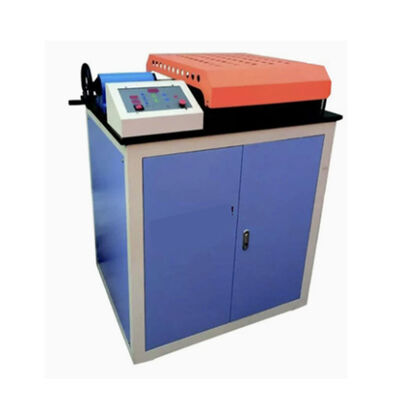

Steel Bar Forward and Reverse Bending Testing Machine Automatic Vertical Steel Pipe Bending Tester Rebar Bending Test Equipment

Large Image : Steel Bar Forward and Reverse Bending Testing Machine Automatic Vertical Steel Pipe Bending Tester Rebar Bending Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Steel Bar Forward and Reverse Bending Testing Machine Automatic Vertical Steel Pipe Bending Tester Rebar Bending Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	380 V
Warranty:	1 Year
Highlight:	Steel Bar Bending Testing Machine , Automatic Vertical Pipe Bender , Rebar Bending Test Equipment

Steel Bar Forward and Reverse Bending Testing Machine Automatic Vertical Steel Pipe Bending Tester Rebar Bending Test Equipment

Product Description

Product Introduction

The steel bar forward and reverse bending testing machine is mainly used for testing the forward and reverse bending performance of steel bars.

ESteel Bar Forward and Reverse Bending Testing Machine Automatic Vertical Steel Pipe Bending Tester Rebar Bending Test Equipment

Technical Specification

Range of diameter of bent steel bars	φ6 - φ50mm
Positive bending angle of the reinforcing bar	0° to 180° (adjustable)
Reverse bending angle of the reinforcing bar	0° to 180° (adjustable)
Rotational speed of the work disc	1.4 revolutions per minute (rpm)
Roll center distance	165mm
Diameter of the working disc	φ580mm
Motor power	1.5 kilowatts (kW)
Overall dimensions of the machine	1000 × 750 × 1200 mm
Net weight of the machine	1500kg

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
