LR-HQLH101 Type thermal air aging testing chamber

(Technical Specification)

reference picture

Project

Content

Usage

The hot air aging test chamber is suitable for conducting thermal resistance tests on electrical insulation materials, as well as aging tests for electronic components, plastic products, and other items; it is used to evaluate and determine the adaptability of these materials in storage and use under high-temperature conditions. The samples are aged in simulated high-temperature and atmospheric pressure air, and their properties are measured and compared with those of the un-aged samples.

Test standards

It conforms to the turbulent flow design specified in the standard ASTM D5721/GB/T3512-2014/ISO 188 2011 "Sulfurized rubber or thermoplastic rubber / Accelerated aging and heat resistance test under hot air conditions".

Box structure

1. Internal dimensions: 450 (width) × 450 (depth) × 500 (height) mm;

2. External dimensions approximately: 1150 (width) × 700 (depth) × 1550 (height) mm. Refer to the actual product for the exact dimensions;

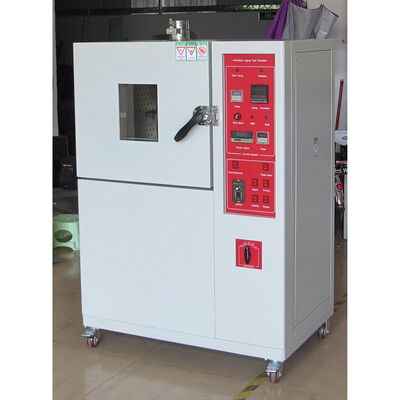

3. Operating panel: The control operation panel is located on the right side of the machine (as shown in the picture);

4. Door opening method: Single door opens from right to left;

5. Observation window: The door is equipped with tempered glass window, with specifications of W250*H350 mm;

6. Internal material: 304# stainless steel sand plate: thickness 1.2 mm;

7. External material: Cold-rolled steel plate, thickness 1.0 mm, powder-coated treatment; (white color)

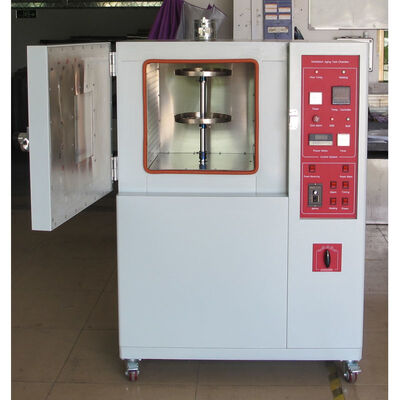

8. Product materials: Two internal rotating discs with a diameter of 300 mm;

9. Speed control motor: One set, with a speed range of 3-20 revolutions adjustable;

10. Insulation material: High-temperature resistant fiber rock wool, with good insulation effect;

11. Door sealing material: High-temperature resistant silicone strip;

12. Machine installation: Includes movable casters and fixed feet, which can be pushed around and fixed in place.

Temperature control system

1. Temperature control is via a PID digital display instrument (Taiwan Tsengsu Instrument GB705), single-point temperature control, capable of automatic calculation, PV/SV displayed simultaneously, and set through buttons;

2. Timing function: 1 - 9999 hours (option to set hours, minutes, and seconds) for temperature to timing, when the time reaches, heating stops and power supply is cut off, and an alarm is triggered simultaneously;

3. Temperature sensing wire (K) type;

4. Output: 3 - 32V;

5. Current controller: SSR solid-state relay;

6. Heating material: stainless steel high-temperature resistant heating tube;

7. Temperature range: normal temperature + 15 - 300℃, adjustable temperature;

8. Heating rate: approximately 18 minutes for a 100℃ increase;

9. Control accuracy: ±0.5℃;

10. Display accuracy: 0.1℃;

11. Temperature deviation: RT + 15 - 200℃ ± 2.0℃, 201 - 300℃ ± 3.0℃. (No-load test)

Ventilation system

1. Air exchange rate: 3 - 10 times per hour;

2. Power meters for testing with and without air exchange are provided;

3. Air exchange is controlled by adjustable ducts, allowing manual adjustment of the amount of fresh air supplied, for natural ventilation;

4. Exhaust volume is provided by a manually adjustable duct located at the top of the machine (exhaust needs to be directed outdoors);

5. Air exchange method: natural air intake;

6. Exhaust outlet is located at the top of the machine, and the air outlet is controlled by a manual switch;

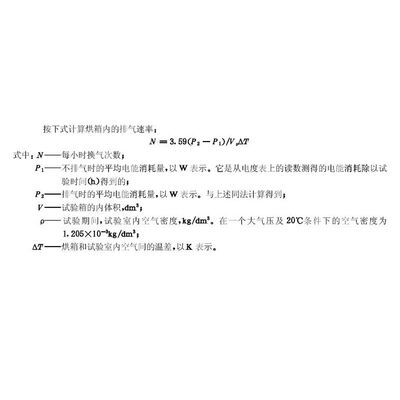

7. Air exchange volume calculation formula:

Circulating air supply system

1. Air supply method: Internal hot air circulation;

2. The motor is a special type for high-temperature resistance and long shaft, with a power of 370W/220V;

3. The fan wheel is a multi-blade turbine type with a diameter of 9 inches.

Safety protection system

1. Over-temperature protection system: When the temperature exceeds the preset over-temperature protection limit, the heating power supply will be automatically cut off to ensure the safety of the products and the machine.

2. Circuit protection system: Grounding protection, rapid fuse protection, etc.

Power supply device

1. Voltage: 220V

2. Power: 4.5KW

3. Current: 21A
