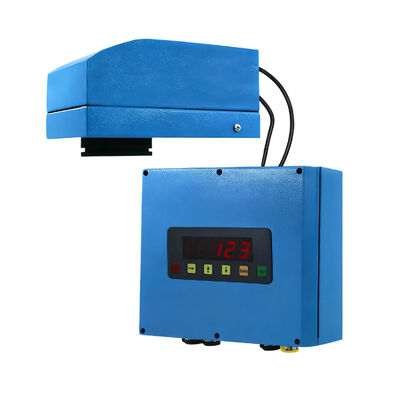

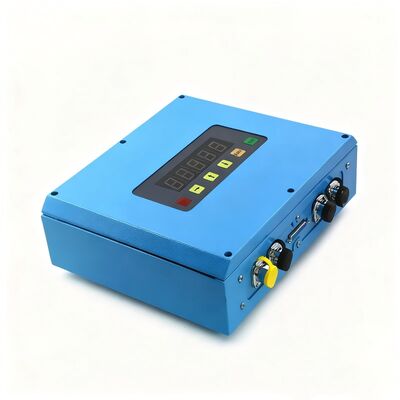

Online Moisture Meter Online Infrared Moisture Analyzer NIR Moisture Meter Real-time Infrared Moisture Detection Instrument
Description
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
/
Application:
Auto Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
Ip56
Voltage:
220 V
Warranty:
1 Year
Number Of Channels:
50
Resolution:
0.01%
Machine Weight:
7kg
Power Supply:
AC 220V 50Hz
Highlight:
infrared moisture analyzer lab instrument
,
NIR moisture meter real-time detection
,
online moisture meter infrared analyzer
Online Moisture Meter Online Infrared Moisture Analyzer NIR Moisture Meter Real-time Infrared Moisture Detection Instrument
Working Principle
1. The hydrogen-oxygen bonds in water molecules absorb near-infrared light of specific wavelengths. At this specific wavelength, the energy of the reflected near-infrared light is inversely proportional to the energy absorbed by the water molecules in the material. The moisture content of the measured material is calculated based on the amount of energy loss.
2. When water molecules are excited by a specific energy band, they become vibratory. This band is particularly strong for water molecules in the near-infrared region of the spectrum, and the instrument is also easier to implement in terms of energy emission, filtration, and reception.
3. Near-infrared measurement technology is a non-destructive, non-contact, real-time measurement technique. Structural Features:
* Employs a single-sensor, five-wavelength detection method, significantly improving stability compared to six-beam or eight-wavelength methods.
* Five wavelengths provide more reference wavelengths, enhancing measurement stability and accuracy.
* Average testing accuracy reaches approximately 0.1%-0.5% (depending on the material being measured), meeting production process requirements.
* Enables online dynamic real-time detection with a response time of only 8ms, achieving real-time control of product moisture content.
* Highly integrated electronic components and SMT-technology circuit boards result in low failure rate and stable, reliable quality.
* Smaller filters than traditional brands, less affected by bandwidth limitations.
* Single lead sulfide sensor avoids linearity issues associated with dual sensors.
* Dynamic real-time diagnostic system, requiring no regular maintenance.
* Multiple output signal options: RS485, 4-20mA analog signal, and USB interface.
Functional Features
1. Non-contact, using infrared technology to measure moisture through diffuse reflection.
2. 1. Multi-channel configuration: The LSD-series moisture analyzer has 50 channels, numbered 1-50. Each channel number represents a set of channel parameters. Changing the channel number selects different channel parameters to accommodate the measurement of different types of materials using the same instrument.
2. Minimal impact from external light variations: Features automatic temperature compensation, ensuring excellent long-term stability despite temperature changes.
3. Simple installation and quick operation: Installation and commissioning do not disrupt normal production. The LSD-series moisture analyzer uses pre-calibration; on-site calibration only requires adjusting the intercept (zero point).
Online Moisture Meter Online Infrared Moisture Analyzer NIR Moisture Meter Real-time Infrared Moisture Detection Instrument
Technical Specification
Equipment Model
LR-300M
Applicable Materials
Brightly colored objects such as white and yellow
Test Wavelength
Detection at wavelengths such as 1940nm and 1818nm
Probe Glass
High-canopy quartz glass is adopted to prevent stains and moisture from adhering
Measurement Range
0-50%(The maximum measurement range is when the material reaches water absorption saturation)
Measurement Accuracy
±0.2%-±0.01%(absolute value)
Resolution
0.01%
Spot diameter
40mm-60mm
Measurement speed
0.0125s
Detector
Add filter packaging to avoid interference from external light
Calibration and adjustment
Quick calibration and pre-calibration, no need for daily recalibration
Filtering time
Linear or exponential (0.1-180 seconds)
Output interface
RS485,DC4-20mA,USB
Communication protocol
Select the Free Choice Protocol or the MUDBUS-RTU Protocol
Data processing
Support the storage and export of test data
Storage capacity
100,000 pieces (with a 1-minute time interval)
Control method
7-inch color touch screen
Language switching
Chinese, English
Number of channels
50
Operating temperature
-20℃~50℃
Operating distance
250mm±100mm
Power supply
AC 220V 50Hz
· Weight
probe:6kg
host:7kg
· Main Component
1. Probe: 1 unit
2. Main unit: 1 unit
3. 2-pin aviation connector (RS485 output): 1 unit
4. Power cord: 1 piece
5. Connecting cables between main unit and probe (2-10P cable, 3-7P cable): 2 pieces
6.4-pin aviation connector: 1 piece (RS485, DC 4-20mA)
