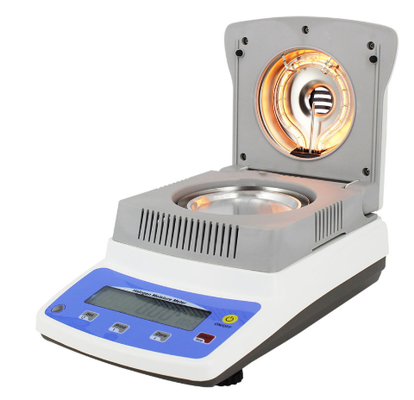

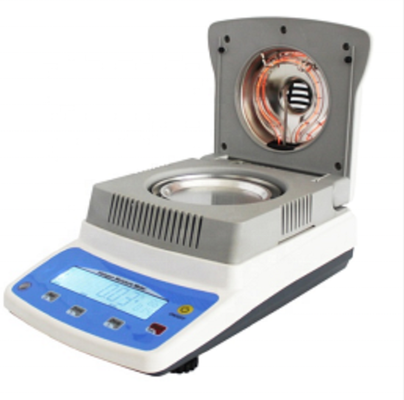

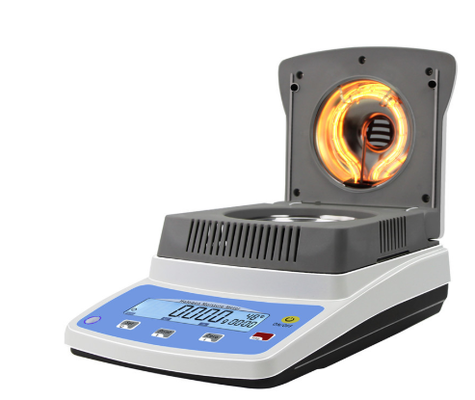

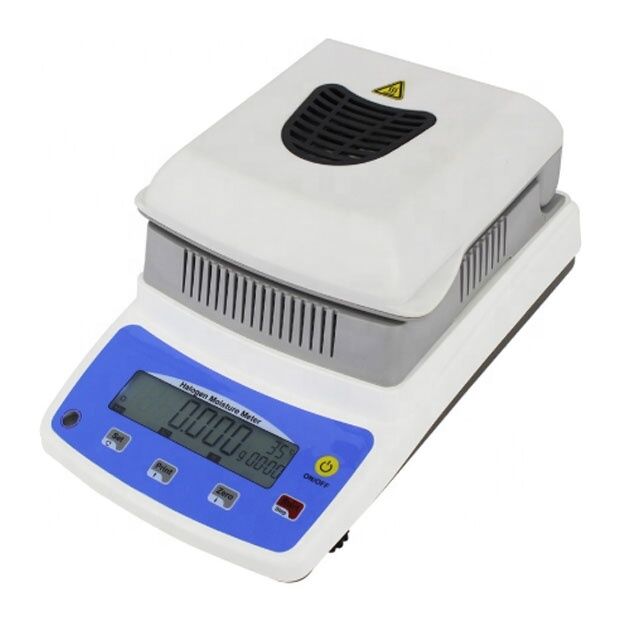

The moisture meter and halogen moisture meter are new and rapid moisture measuring instruments.Using ring halogen lamp heating, intelligent operation.Can quickly and uniformly dry the sample, obtain accurate moisture measurement results clear moisture measurement information display can realize intuitive, simple, convenient instrument operation
Moisture meter can be widely used in all industries that need to quickly measure moisture, to meet the application requirements of various industries, such as plastic, rubber, chemical, pharmaceutical, food, and other industries in the production and experimental process.
Weight before drying, weight after drying, moisture value, solid content, temperature, test time
Calibrating weight
100g
Pan Size
φ110 (mm)
Communication interface
Standard RS232 communication interface - easy to connect printers, computers and other peripherals
Boundary dimension
330*205*165(mm)length width and height
Weight
5.1kg
Features:
1, no installation, debugging training, unpacking can be used, simple operation, save tedious use steps;
2, uniform heating, short determination time, high efficiency, stable performance, accurate test;
3, small size, light weight;
4, automatic measurement, measurement completed alarm reminder, determination process without care;
5, the use is very wide, almost suitable for the determination of moisture in various industries;
6, Germany imported sensors make the instrument test effect more excellent, accurate;
7, unique design of windproof cover, make the instrument weighing system more stable;
8, the sample water content, solid content can be converted at the same time;
9, the heating cavity adopts pure stainless steel cavity cover, high temperature resistance, easy to clean.
Test steps:
1. At the state of 0.000, put the test sample in the sample tray (evenly spread out)
2. Close the lid and press Start to Start the heating test.
3. After the test, the screen will display the moisture content of the sample directly. Press Set to switch various parameters, and then press Start to return to the next sample test.
Test details:
1. Dry the sample tray before heating
2. The weight of the sample affects the measurement time and the repeatability of the results. It is recommended that the sample weight be about 5-10g
3. After testing a sample, wait until the temperature drops below 50 degrees before testing a new sample.
