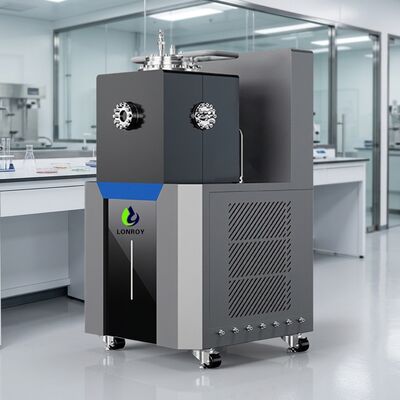

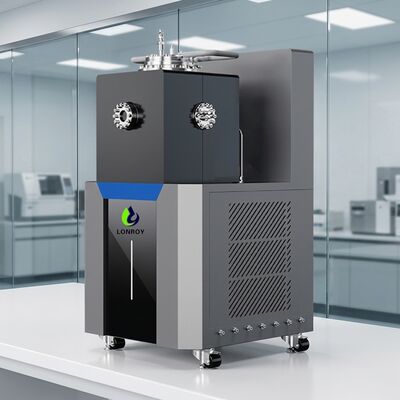

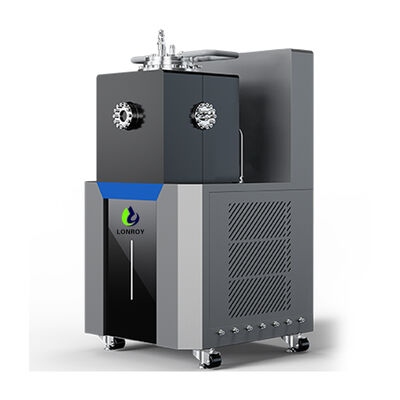

ASTM E918 EN 1839 Multiphase HT-HP Explosion Limit Tester ASTM E2079 EN 15967 High-Temp Pressure Explosion Pressure Test Machine

ASTM E918 EN 1839 Multiphase HT-HP Explosion Limit Tester ASTM E2079 EN 15967 High-Temp Pressure Explosion Pressure Test Machine

Product introduction

Developed in accordance with standards such as ASTM E918, ASTM E2079, EN 1839, EN 15967, and UL9540A, this instrument can conduct tests on combustion and explosion characteristics including lower explosion limit, upper explosion limit, maximum oxygen concentration, explosion pressure, and pressure rise rate. This instrument can be used for detecting the explosion characteristics of multi-phase eruption substances during lithium battery thermal runaway in the new energy field, testing the explosion characteristics of gas produced during battery thermal runaway under the UL9540A standard, and testing the explosive potential of organic vapors in the synthesis process in the fine chemical field.

Test characteristics

Lower explosion limit, maximum oxygen concentration, explosion pressure, pressure rise rate

Application fields

Lithium batteries | Combustible gases

Product features

Modular concept design, flexible to meet various testing requirements

Experiment process can be freely edited according to different testing needs

The test container is made of 316L stainless steel, resistant to corrosion

The jacketed temperature control method has high control efficiency

The constant temperature conditions can be flexibly set, balancing efficiency and accuracy

Equipped with an efficient vacuum pump, cleaning parameters can be set, fully eliminating residual effects

Precise measurement and control system, with compensation gas supply algorithm, achieving precise control of gas concentration

Has a stirring function to ensure the uniformity of the mixed gas

Uses explosion-specific pressure sensors, with high working temperature and good dynamic performance

Automatic control of gas samples, automatic vacuum pumping, automatic gas mixing, automatic stirring

The equipment has a safety interlock function to enhance safety

Multiple safety protections such as safety valves and rupture discs, effectively ensuring the safety of experimental personnel

Testing standards

ASTM E918, ASTM E2079, EN 1839, EN 15967, UL9540A

LASTM E918 EN 1839 Multiphase HT-HP Explosion Limit Tester ASTM E2079 EN 15967 High-Temp Pressure Explosion Pressure Test Machine

Technical Specification
