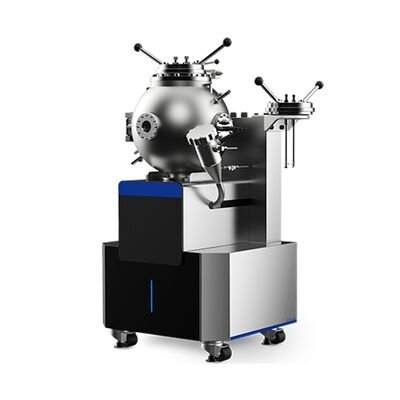

LONROY ISO 80079 EN 14034 Spherical Explosion Testing Machine IEC 6184 Remote Control Dust Gas Explosion Index Test Equipment
Description
Type:
Testing Machine
Accuracy Class:
High Accuracy
Accuracy:
/
Application:
Auto Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
Ip56
Voltage:
220 V
Warranty:
1 Year
Highlight:
ISO 80079 explosion testing machine
,
EN 14034 spherical explosion tester
,
IEC 6184 dust gas explosion equipment
LONROY ISO 80079 EN 14034 Spherical Explosion Testing Machine IEC 6184 Remote Control Dust Gas Explosion Index Test Equipment
Product Introduction
A professional testing instrument used to determine the maximum explosion pressure, the maximum rate of pressure increase and the explosion index K of dust cloud explosions under specific test conditions. It is mainly used for the assessment of dust explosion hazards in production and processing sites of aluminum powder, zinc powder, plastic powder, intermediate products of organic synthetic drugs, wheat flour sugar, wood chips, dyes, bakelite ash, milk powder, etc.
Testing characteristics
Maximum explosion pressure, maximum rate of pressure increase, explosion index
Application fields
Flammable dust
Product features
1. It can test the explosion parameters of dust, gas, and systems with solid/gas mixture simultaneously.
2. It is equipped with international standard testing parameters, and can be tested according to standard parameters or customized.
3. It has two ignition methods: chemical ignition and static electricity ignition, suitable for different testing purposes.
4. The explosion container has a water circulation chamber to maintain a constant temperature in the testing environment.
5. Input the target concentration value, and the system will automatically clean and evacuate, and complete gas mixing according to the requirements.
6. The dust dispersion device can evenly disperse the dust into the explosion container completely.
7. The experiment is carried out automatically without manual intervention.
Real-time display of time and pressure, making the testing process more intuitive.
8. The test results include a time-pressure curve, providing detailed explosion information.
9. Remote control ensures the safety of the experiment personnel.
10. It is controlled by a computer, with strong data analysis capabilities and accurate curve feature judgment.
Testing standards
ASTM E1226, ASTM E1515, EN 14034-1, EN 14034-2, EN 14034-3, EN 14034-4, GB/T 16425, GB/T 16426, GB/T 803, ISO/IEC 6184/1, ISO/IEC 6184/2, ISO/IEC 80079-20-2
LONROY ISO 80079 EN 14034 Spherical Explosion Testing Machine IEC 6184 Remote Control Dust Gas Explosion Index Test Equipment
Maximum Sampling Rate: 100 ks/s, Recording Duration: 1s
Ignition Control
Supports Remote Wireless Ignition
Automatic Gas Distribution
Equipped with 2 gas inlets and 1 air inlet; adopts partial pressure gas distribution method, fitted with independent gas distribution pressure sensor and solenoid valve, gas distribution accuracy ±0.1%
Vacuum System
Rotary Vane Vacuum Pump, equipped with double-layer impact-resistant filter to prevent pipeline blockage and contamination by residual substances, easy replacement
