Model
|
MC03
|
MC06
|
MC12
|
|
Measurement
Geometry
|
3 angles
(3 light sources, 1 receiver)
|
6 angles
(6 light sources, 1 receiver)
|
12 angles
(7 light sources, 2 receivers)
|
|

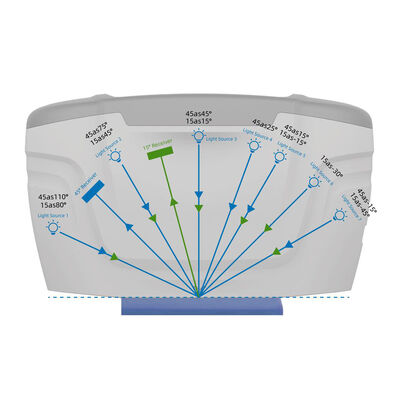

Color Measurement Angles
|
45° receiver:
45as15°,45as45°,45as110°
|
45° receiver:
45as-15°,45as15°,45as25°,
45as45,45as75°,45as110°
|
45° receiver:
45as-15°,45as15°,45
as25°,45as45°,
45as75°,45as110
15°receiver:
15as-45°,15as-15°,15as15°,
15as-30°,15as45°,15as80°
|
|
Illumination Source
|
Full-spectrum LED with blue-light enhancement
|
|
Light Source Lifetime
|
10 years / 5 million measurements
|
|
Detector
|
256-pixel dual-array CMOS image sensor
|
|
Spectral Range
|
400nm-700nm
|
|
Measurement Aperture
|
Illumination Φ24mm / Sampling 9×12mm
|
|
Additional Indices
|
Flop Index, Color Travel Index
|
|
Measurement Time*
|
About 2.5s
|
About 4.5s
|
About 5s
|
|
Battery Life
|
Up to 5000 measurements
|
|
Color Repeatability
|
0.02 ΔE*ab
(after warm-up calibration, 30 white tile measurements at 5s intervals, standard deviation)
|
|
Color Reproducibility
|
ΔE* < 0.10
(average on gray BCRA tiles); ΔE* < 0.25 (average on colored BCRA tiles)
|
|
Inter-instrument Agreement
|
0.2 ΔE*00 (BCRA II, 12 tiles)
|
0.18 ΔE*00
(BCRA II, 12 tiles)
|
|
Effect Parameters
|
/
|
Sparkle, Color Sparkle, Graininess
|
|
Effect
Measurement
|
/
|
6-angle sparkle and graininess:
15as-45°, 15as-30°, 15as-15°, 15as15°, 15as45°, 15as80°; 15d diffuse graininess
|
|
Effect Repeatability
|
/
|
Sparkle short-term repeatability: 0.12%
(standard deviation of 10 measurements)
(After instrument warm-up calibration, average of 10 measurements on color tile at 10s intervals)
Graininess short-term repeatability: 0.09%
(standard deviation of 10 measurements)
(After instrument warm-up calibration, average of 10 measurements on color tile at 10s intervals)
|
|
Positioning
|
Color camera preview
|
|
Display
|
3.5-inch TFT true-color capacitive touchscreen
|
|
Data Storage
|
10,000 records
|
|
Compliance Standards
|
ASTM D 2244,E 308,E 1164,E 2194,E2539,DIN 5033,5036,6174,6175-1,6175-2;IS07724,11664-4
,SAE J 1545
|
|
Special Features
|
Provides precise and consistent color measurement for metallic, pearlescent, and other complex special-effect colors
|
|
Spectral Dispersion
|
Concave grating
|
|
Wavelength Interval
|
10nm
|
|
Measurement Range
|
0~600%
|
|
Half Bandwidth
|
10nm
|
|
Color Spaces
|
CIE LAB,XYZ,Yxy,LCh,βxy.DIN Lab99,RGB,hunter Lab
|
|
Color Difference Formulas
|
ΔEab, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00, DIN ΔE99, ΔE DIN6175, multiple automotive OEM formulas; Metamerism, ΔEab(Hunter), ΔEch, ΔE*uv
|
|
Observer Angles
|
2°/10°
|
|
Observation Light Sources
|
A,B,C,D50,D55,D65,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12,CWF,U30,U35,DLF,NBF,TL83,TL84,
ID50,ID65,LED-B1,LED-B2,LED-B3,LED-B4,LED-B5,LED-BH1,LED-RGB1,LED-V1,LED-V2,LED-8
|
|
Trigger Modes
|
Pressure sensor, button trigger, software trigger
|
|
Measurement Modes
|
Single, average, continuous measurement
|
|
Measurement Observation Method
|
Camera
|
|
Dimensions
|
194 × 73 × 118mm
|
|
Weight
|
About 850g
|
|
Interfaces
|
USB, Bluetooth
|
|
Languages
|
Simplified Chinese, Traditional Chinese, English
|
