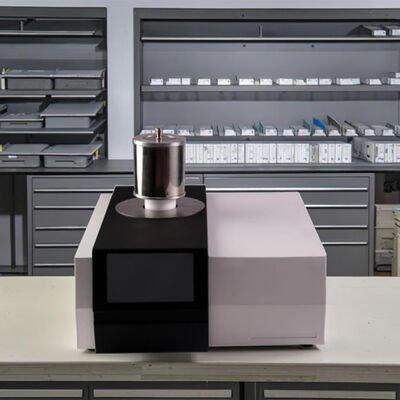

DTA DSC Analyzer 1000C High Temperature Differential Scanning Calorimeter DSC Differential Scanning Calorimeter
Description
Type:
Testing Machine
Accuracy:
---
Application:
Lab Testing, Laboratory Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
IP66
Voltage:
220 V
Warranty:
1 Year
Product Name:
Differential Scanning Calorimete
Model:
LR-DSC1000
Working Power Supply:
AC220V/50Hz Or Customized
Temperature Range:
Room Temperature ~1000℃
Highlight:
high temperature DSC analyzer
,
DTA DSC calorimeter 1000C
,
differential scanning calorimeter with warranty
DTA DSC Analyzer 1000C High Temperature Differential Scanning Calorimeter DSC Differential Scanning Calorimeter
Product Introduction:
DSC is a differential sensor with the highest precision introduced by the company, and the sensor is made of imported materials with high sensitivity. Signal acquisition circuit shield protection, strong anti-interference, high baseline stability.
The differential scanning calorimeter is a touch screen type, which can be used for glass transition temperature test, phase transition test, melting and enthalpy test, product stability, curing, oxidation induction period test, specific heat test. Wide range of application
DTA DSC Analyzer 1000C High Temperature Differential Scanning Calorimeter DSC Differential Scanning Calorimeter
Technical parameters:
1. Temperature range: room temperature ~1000℃
2. Temperature resolution: 0.01℃
3. Temperature fluctuation :±0.01℃
4. Temperature repeatability :±0.1℃
5. Heating rate: 0.1 ~ 100℃/min
6. Constant temperature time: program setting
7. Temperature control mode: PID temperature control, temperature rise, constant temperature (automatic program control)
8.DSC range: 0 ~ ±600mW
9.DSC resolution: 0.01uW
10.DSC sensitivity: 0.001mW
11. Working power supply: AC220V/50Hz or customized
12. Atmosphere control gas: nitrogen, oxygen (automatic instrument switching)
17. Parameter standard: equipped with standard material (indium, tin), users can correct the temperature by themselves
18. The instrument has several sets of thermocouples, a group to test the sample temperature, a group to test the internal ambient temperature of the instrument
19. The instrument has multi-point correction function, which can meet the accurate test of high, middle and low samples
20. The software can set the data collection frequency and export EXECL data packets and PDF reports
21. Curve scanning: temperature scanning, temperature scanning, temperature scanning
DTA DSC Analyzer 1000C High Temperature Differential Scanning Calorimeter DSC Differential Scanning Calorimeter
Technical features:
1. Industrial grade 7 inch touch screen, display rich information.
2. New ceramic furnace structure, better baseline, higher precision. Heating by indirect conduction mode, high uniformity and stability, reduce pulse radiation, better than the traditional heating mode.
3. USB communication interface, strong versatility, reliable communication without interruption, support for self-recovery connection function.
4. Automatic switching of two air flow, fast switching speed, short stability time. At the same time, add a protective gas input.
