LR-K009 Building Material Burn Combustion Tester

Large Image : LR-K009 Building Material Burn Combustion Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-K009

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

LR-K009 Building Material Burn Combustion Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	±1%	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	IP66	Voltage:	220 V
Warranty:	1 Year	Product Name:	Building Material Combustion Tester
Highlight:	LR-K009 flammability tester , building material combustion tester , burn tester for flammability testing

LR-K009 Building material burn combustion tester

Technical specifications

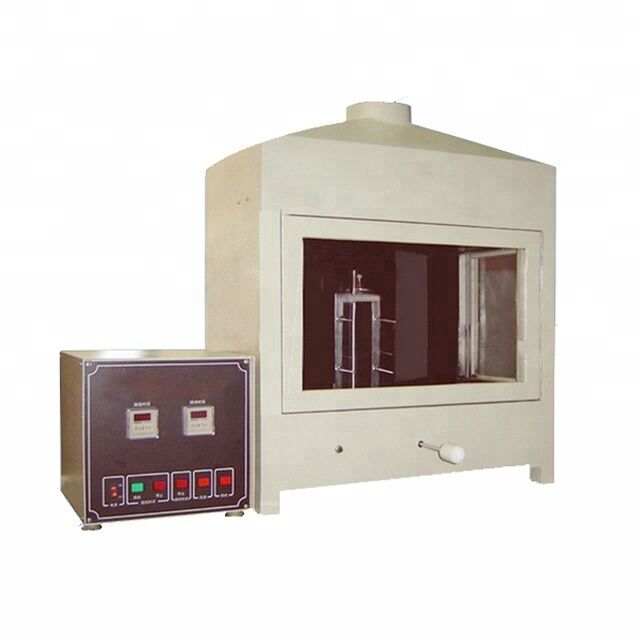

The combustion testing machine is designed and manufactured according to the standard gb8626-88 and is used to determine whether the building materials are flammable under the specified conditions.The test machine consists of two parts: the control box and the combustion box. The control system has the function of automatic ignition, automatic gas supply and automatic timing. The operation is simple and convenient.

LR-K009 Building material burn combustion tester

The basic specifications

dimensions of the box size test box	700mm x 400mm x 810mm, and the top of the box has 150mm smoke vent. The front and right side are equipped with a glass observation window with a stainless steel mesh at the bottom
Burner size parameter burner by aperture	The nozzle and regulator of 0.17mm are composed of four 4mm air suction holes
Casting time	0 ~ 99 minutes 99 seconds can be set
The ignition time	0 ~ 99 minutes 99 seconds can be set
The flame height	can be adjusted to 20 + 2mm by standard
Combustion gases	used in the purity of more than 95% propane gas
Burning Angle	45 °
whole set of configuration	composed of control box, combustion box body, burner, solenoid valve, high-voltage igniter, signal control line and sample bracket.
Power	AC 220V / 50
