Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Viscometer

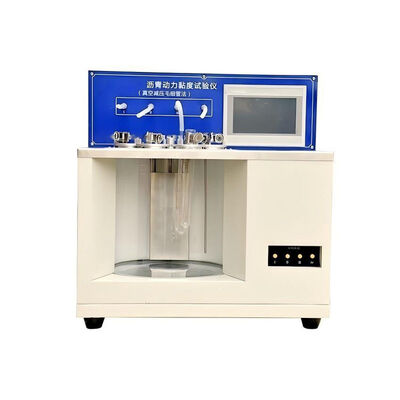

Large Image : Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Viscometer

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Viscometer

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Operating Power Supply:	AC (220±10%)V, 50Hz, Power Consumption Not Exceeding 1800W
Relative Humidity:	≤85%	Dimensions:	590mm * 430mm * 630mm (Length * Width * Height)
Net Weight:	32.5 Kg (without Water In The Bathtub)
Highlight:	asphalt viscosity tester vacuum capillary , petroleum asphalt viscosity analyzer , vacuum capillary viscometer asphalt

Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Viscometer

Product Description

Purpose and Scope of Application

This instrument is designed and manufactured according to the requirements of the People's Republic of China industry standard JTG E20-2011 "Test Procedures for Asphalt and Asphalt Mixtures in Highway Engineering" T0620-2000 "Dynamic Viscosity Test of Asphalt (Vacuum Capillary Method)" and the People's Republic of China petrochemical industry standard SH/T0557-1998 "Petroleum Asphalt Viscosity Determination Method (Vacuum Capillary Method)".

This instrument is suitable for determining the dynamic viscosity of viscous petroleum asphalt using a vacuum capillary viscometer. Unless otherwise specified, the test temperature is 60℃ and the vacuum degree is 300mmHg.

This instrument is also suitable for determining the viscosity of other substances in the range of 0.0036-20.00 Pa·s using the vacuum capillary method, at a test temperature of 60℃ and a vacuum degree of 300mmHg (40Kpa).

Asphalt Dynamic Viscosity Tester Vacuum Capillary Method Petroleum Asphalt Viscosity Analyzer Vacuum Capillary Viscometer

Technical Specification

Temperature Control Method	Intelligent integrated temperature controller maintains the water bath temperature at the required experimental temperature
Temperature Control Range	Room temperature ~ 100.00℃
Temperature Control Accuracy	±0.03℃
Operating Pressure Range	300mmHg ± 0.5mmHg
Timing Method	Built-in 4 timers, capable of simultaneously timing 4 capillary tubes
Timing Range	0.0s–9999.9s (27.7 hours); Error <0.02%
Measurement Range	Approximately 18Pa·s ~ 58000Pa·s
Number of Sample Wells	4
Human-Machine Interface	Color LCD touchscreen
Operating Power Supply	AC (220±10%)V, 50Hz, power consumption not exceeding 1800W
Ambient Temperature	5℃–50℃
Relative Humidity	≤85%
Dimensions	590mm × 430mm × 630mm (Length × Width × Height)
Net Weight	32.5 kg (without water in the bathtub)
