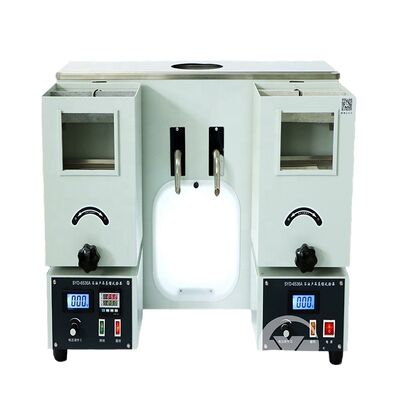

SYD-6536A Double Tube Frame Petroleum Oil Products Distillation Tester Diesel Distillation Testing Machine

This instrument is designed according to the requirements of the People's Republic of China standard GB/T 6536 "Distillation Method for determination of Petroleum products", which is suitable for the distillation determination of gasoline, aviation gasoline, steam injection fuel, special boiling point solvent, naphtha, diesel, distillate fuel and similar petroleum products.

Main technical features

1, the instrument for the double tube working mode, can be carried out a single tube independent test, but also two samples of the same specifications at the same time test, greatly improve the work efficiency.

2, the use of special heating furnace form, to ensure the safety of the test, heating power continuous adjustable.

3, the sample heating is composed of two sets of independent control circuit, the user can adjust the heating power of each set of control box according to different requirements.

SYD-6536A Double Tube Frame Petroleum Oil Products Distillation Tester Diesel Distillation Machine

The main technical parameters and indicators

1, working power supply: AC(220±10%)V 50Hz;

2. Volume of cylinder: 100ml, division 1ml;

3, temperature control instrument: (1) Temperature control range: (room temperature +10)℃ ~ 60℃ arbitrary setting. (2) Temperature control accuracy: ±0.5℃; (3) Temperature display mode: LED digital display.
