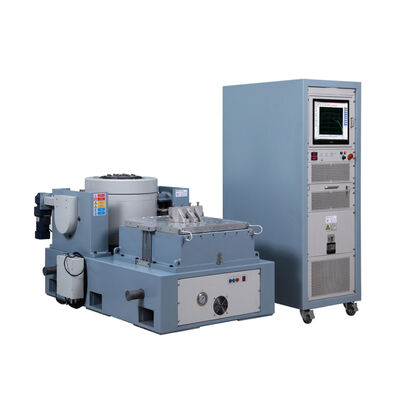

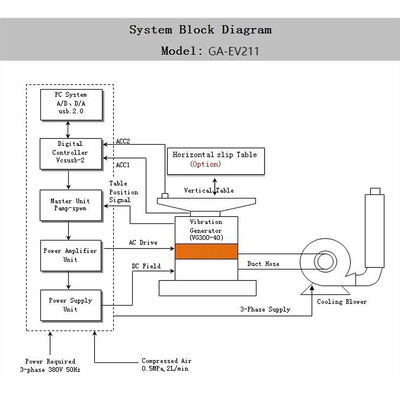

Vibration Test Bench Electromagnetic Horizontal and Vertical Vibration Testing Machine Digital Vibration Shaker System

LR-EV211 Electromagnetic excitation generator parameters

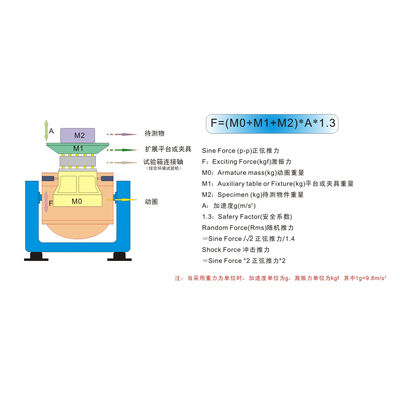

maximum sine excitation force

1100Kg.f  peak

Maximum random excitation force

1100Kg.f  r.ms

Maximum impact exciting force

2200Kg.f  peak

frequency domain

1~2800 Hz

maximum displacement

51mm p-p

maximum speed

2m/s

maximum acceleration

100G

one class resonant frequency

2500 Hz±5%

maximum load

300 kg

Isolation frequency

2.5 Hz

Drive diameter

240 mm

Drive Mass

11kg

Table screw

17×M10

Magnetic leakage

< 1 mT<10gauss

Permissible Eccentric Torque

500N.m

Dimensions

920mm×740mm×785mm(No expansion table)

Bench weight

1100Kg (water-free smoothing table)

SA10K Digital switching power amplifier

output power

10KVA

output voltage

120V

current output

100A

Signal to Noise Ratio

>65dB

Power amplifier size

910mm×610mm×1150mm

weight

400KG

Servo protection system

function

Temperature, wind pressure, overdisplacement, overvoltage, overcurrent, input undervoltage, external fault, control power supply, logic fault, input shortage equal

Digital vibration controller

hardware configuratio

2 input channels,1 output channel

Sinusoidal, random, typical shock

control the computer

Original brand computer, LCD monitor (including keyboard/photoelectric mouse)

software

Chinese/English operation, time domain and frequency domain analysis, signal source, sine sweep frequency analysis, etc. Can automatically generate WORD test report, signal and data display, storage, set test parameters and analysis functions.

operating system

Windows 10

Acceleration sensor LTE

Frequency range: 1-7000Hz

Sensitivity: 30PC/g

Temperature range: -40-180 ℃

VT100 Vertical extension platform

Material quality

Aluminum/magnesium alloy

Platform size

1000 mm×1000 mm

Fixed hole position

M10 Stainless steel screw sleeve, durable

Upper service frequency

500 Hz

Weight

165KG

H100 Horizontal oil film slide

Material quality

Aluminum/magnesium alloy,Hard anodized surface

table size

1200 mm×1200 mm

Fixed hole position

M10 Stainless steel screw sleeve, durable

Upper service frequency

2000 Hz

Weight

158KG

B402 Cooling fan (including silencer)

Fan power:

4 KW

Flow

18m³/Min

Size

760*600*1350mm

Weight

130KG

electrical requirement

Electric source

3 phase 380V/50Hz, 20KVA

compressed air

0.6Mpa

ground resistance

≤4Ω
