UTM Various Materials Tensile Strength Test Equipment Tensile Testing Machine Universal Test Machine Tensile Tester

Large Image : UTM Various Materials Tensile Strength Test Equipment Tensile Testing Machine Universal Test Machine Tensile Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-C008

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

UTM Various Materials Tensile Strength Test Equipment Tensile Testing Machine Universal Test Machine Tensile Tester

Description

Maximum Compressive Space:	---	Maximum Tensile Space:	---
Type:	Mechanical Tensile Testing Machine	Crossbeam Displacement Accuracy:	---
Power Supply:	220 V	Power:	AC220V, 50Hz
Machine Weight:	About 95kg	Test Speed:	5 ~ 300mm/min
Maximum Stroke:	900mm, With Fixtures
Highlight:	UTM tensile strength test equipment , universal test machine with warranty , various materials tensile testing machine

Various Materials Tensile Strength Test Equipment Manufacturer

USES:

Suitable for all kinds of hardware, metal and zipper. Rubber, shoes, leather, garments, textiles, insulators, wires, cables, terminals, toys, etc.It can test the physical properties of various materials and finished products and semi-finished products, and select various kinds of clamping tools for the test of tensile, compressive, holding, pressure, bending, tearing, stripping and shear.It is an ideal testing and research equipment for factories, technical supervision departments, commodity inspection institutions, scientific research institutes and colleges and universities.

Various Materials Tensile Strength Test Equipment Manufacturer

Technical participation:

1. Capacity	200kg
2. Weight breakdown	1/25,000;
3. Accuracy of measuring force	better than 0.5%;
4. Effective measuring range	0.5 ~ 100% F.S;
5. Sensor sensitivity	1-- 20mV/V,
6. Accuracy of displacement display value	over plus or minus 0.5%;
7. Maximum stroke	900mm, with fixtures
8. Test speed	5 ~ 300mm/min
9. Unit switching	including KGF, LBF, N, KN, KPa and Mpa, users can also customize the required units.
10. Machine weight	about 95kg
11. Power	AC220V, 50Hz

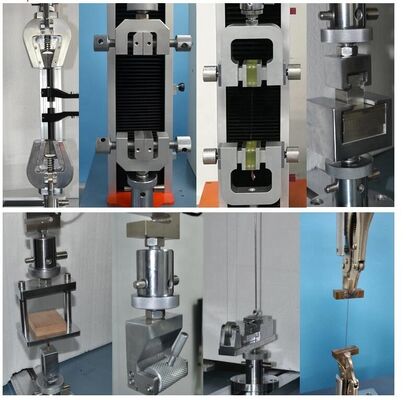

12. A set of forceps
