Digital Spring Fatigue Tester Spring Elongation Testing Machine Spring Tensile Compressive Test Equipment

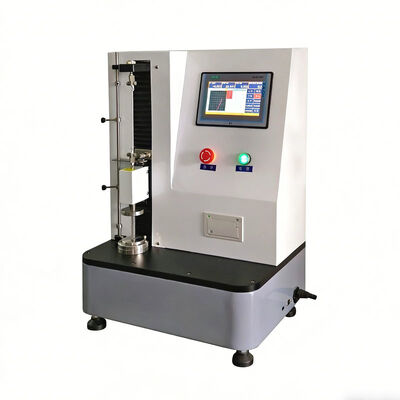

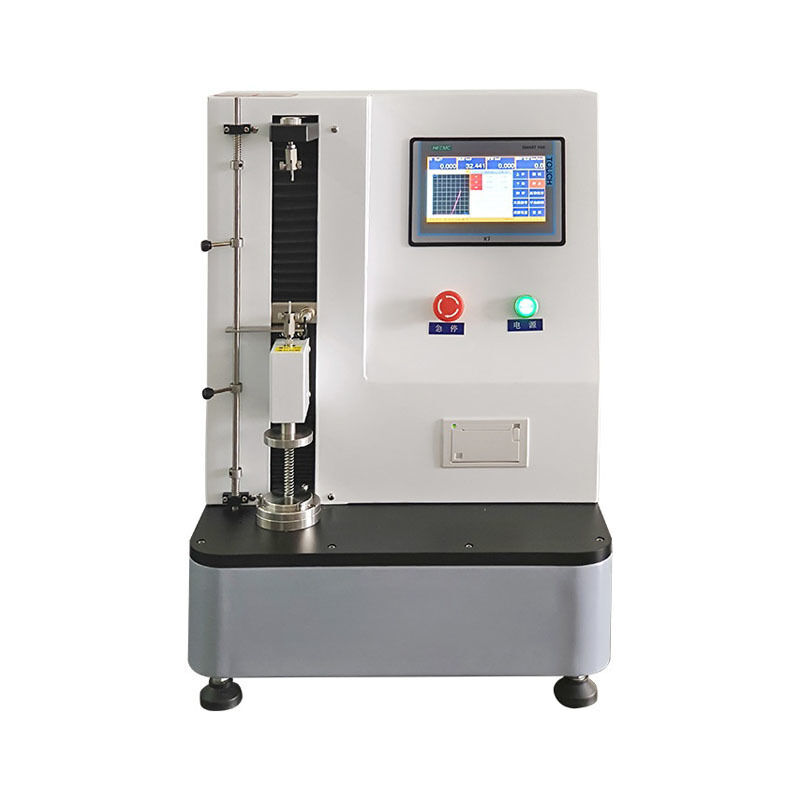

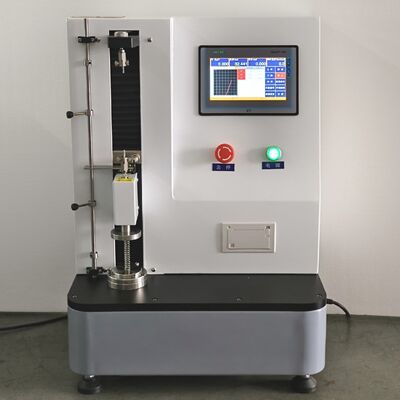

Large Image : Digital Spring Fatigue Tester Spring Elongation Testing Machine Spring Tensile Compressive Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Digital Spring Fatigue Tester Spring Elongation Testing Machine Spring Tensile Compressive Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	/	Application:	Auto Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Power Supply:	1 Ohm, 220V, 6A Or As Specified
Data Sampling Frequency:	100 Hz	Test Load:	20KG
Machine Dimensions:	500360720mm
Highlight:	digital spring fatigue tester , spring elongation testing machine , tensile compressive test equipment

Digital Spring Fatigue Tester Spring Elongation Testing Machine Spring Tensile Compressive Test Equipment

Product Description

This testing machine is manufactured in accordance with the technical requirements stipulated in JB/T7796-1995 "Technical Conditions for Spring Tension and Compression Testing Machines". It is mainly used to test the strength of various precision helical springs and elastic components, that is, to test the test force of the spring under a certain deformation or to measure the test force of the spring at a certain height.

This machine can be customized into various testing equipment according to the requirements of users.

Digital Spring Fatigue Tester Spring Elongation Testing Machine Spring Tensile Compressive Test Equipment

Technical Specification

Test load	20KG
Unit Switch	kg, N, lb
Load decomposition ratio	1/2500
Display mode	Touchscreen control
Test speed	Adjustable from 0 to 500 mm/min
Data sampling frequency	100 Hz
Motor	Servo Motor
Machine dimensions	500360720mm
Power supply	1 ohm, 220V, 6A or as specified
Weight	Approximately 50 kilograms
