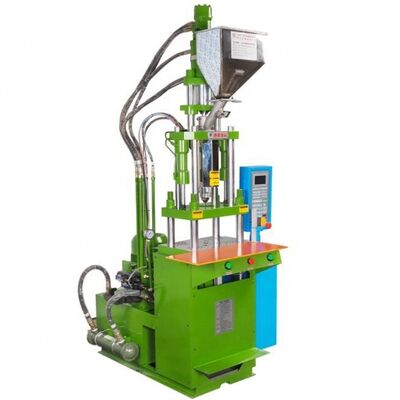

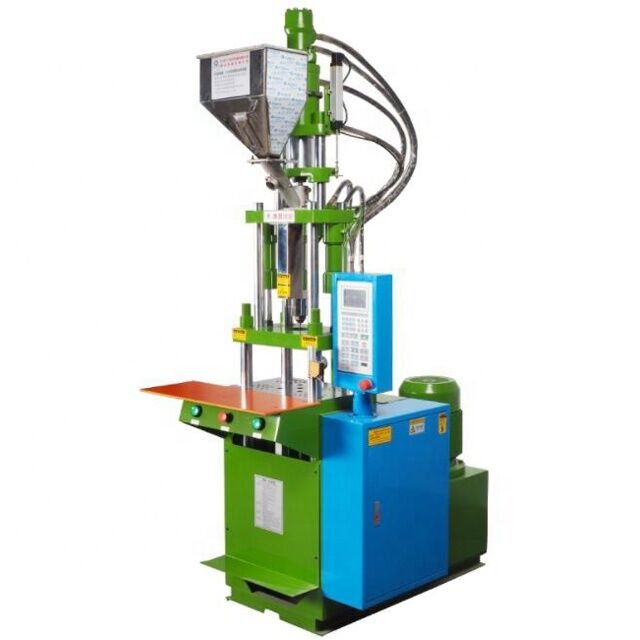

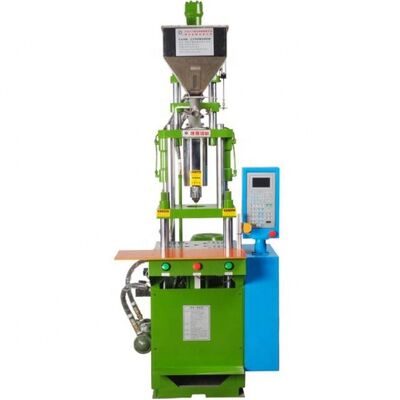

Plastic Testing Sample Injection Machine,small Molding Machine

Large Image : Plastic Testing Sample Injection Machine,small Molding Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-250ST

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$8,500

Contact Now

Plastic Testing Sample Injection Machine,small Molding Machine

Description

Plastic Processed:	PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP	Style:	VERTICAL
Plasticizing Capacity(g/s):	20	Ejector Stroke(mm):	100
Ejector Force(kn):	2000	Theoretical Shot Volume(cm³):	2
Injection Rate (g/s):	66	Machine Type:	Electric
Injection Weight (g):	64	Screw Diameter (mm):	28
Distance Between Tie Bars:	180mm	Weight (kg):	1500
Open Stroke(mm):	400	Power (kw):	4000
Warranty:	1 Year	Key Selling Points:	Automatic
Machinery Test Report:	Not Available	Video Outgoing-inspection:	Not Available
Core Components:	Pump	After-sales Service Provided:	Online Support
Highlight:	small plastic injection molding machine , plastic sample testing machine , plastic molding machine with warranty

Plastic Testing Sample Injection Machine,small molding machine

	Model	Unit	LR-160S2		LR-200ST		LR-250ST			LR-450ST			LR-550ST			LR-850ST			LR-1200ST
INJECTION UNIT	Screw Barrel Diameter	mm	26	28	28	30	26	28	30	30	32	34	32	35	42	42	45	48	42	45	48
	Injection Pressure	kg/cm2	1183	1019	1019	896	1530	1278	886	1171	996	820	1642	1385	960	1027	895	790	1469	1280	1125
	Max. Shot Weight	gram	50	58	58	67	56	64	74	74	84	106	102	123	176	176	201	227	199	228	260
	Max. Shot Weight	cm3/sec	34.6	40	67	76.7	57	66	75.5	62.5	71	95	49	59	84	99	113	129	95	129	183
	Screw Barrel Route	mm	105		105		115			115			140			140			200
	Screw Barrel Rotary Speed	rpm	0-215		0-200		0-205			0-190			0-175			0-200			0-180
	Nozzle Contact Force	tons	4.45		4.45		4.45			4.45			5.5			6.5			7.5
	Nozzle Retraction Nozzle	mm	130		130		170			190			210			210			210
	Number of Temperature Control	pcs	2		2		3			3			3			4			5
CLAMPING UNIT	Clamping Force	tons	15		20		35			45			55			85			120
	Platen Size	mm	450*280		480*310		540*380			580*430			670*480			740*545			870*560
	Distance Between Tie Bere	mm	265		310x170		375*205			410*250			470*280			525*325			635*425
	Min. Mold Height	mm	100/25		100/30		158/58			220/70			270/70			430/230			480/280
	Opening Stroke	mm	190		180		180			200			200			255			300
	Max. Opening Mold Distance	mm	290/215		280/210		338/238			420/270			470/270			685/485			780/580
	Ejetor Force	tons	1.3		1.3		1.3			1.76			1.76			2.1			4.8
	Ejetor Stoke	mm	35		35		35			35			35			45			45
POWER/ HEADING UNIT	Max. Hydraulic Pressure	kg/cm2	140		140		140			140			140			140			140
	Pump Output	L/min	17.5		29.5		34.5			37.2			40			47			56
	Oil Resservoir Capacity	Liter	80		100		100			130			150			180			200
	Cooling Water Consumption	L/hr	400-600		400-600		400-600			600-800			800-1000			800-1000			1000-1200
	Pump Motor Power	kw/hp	2.2/3HP		3.75/5HP		3.75/5HP			5.5/7.5HP			7.5/10HP			11/15HP			14.5/22HP
	Barrel Heating Power	kw	1.8		1.8		2.4			2.8			4.5			5			6
	Total Power	kw	4.2		5.5		6.3			9			12			16			20
OTHER	Machine Weight	tons	0.6		0.68		0.92			1.8			3			5			6.8
	Machine Dimension(LxWxH)	meter	1.350.922.06		1.40.902.37		1.550.932.45			1.71.23			1.851.23			21.33.2			21.44.1
	Shipping Weight	tons	0.8		0.88		1.12			2			3.4			5.4			7.2
	Shipping Measurements(LxWxH)	meter	1.31.02.23		1.491.082.25		1.551.142.3			1.821.182.16			2.01.152.6			2.21.42.5			2.21.62.8
