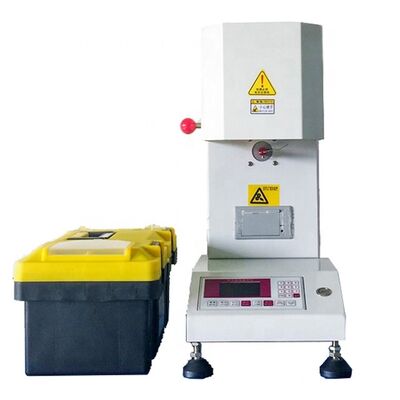

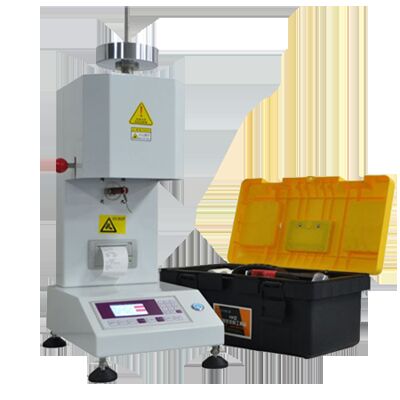

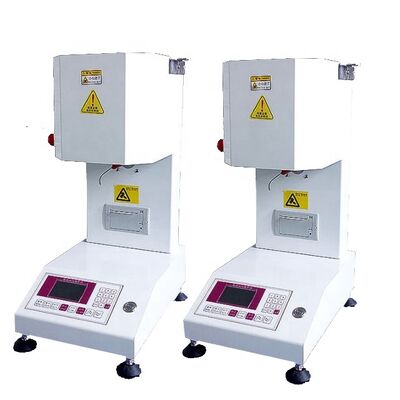

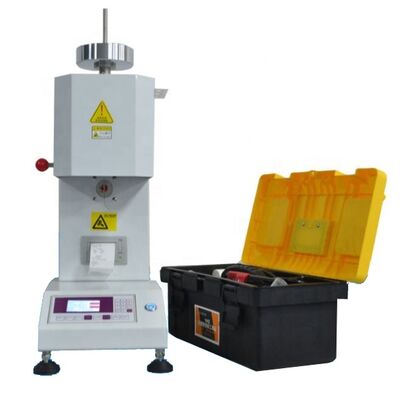

ISO 1133 ASTM D1238 Melt Flow Index MFI Measuring Instrument MFI Tester Melt Flow Index Testing Machine
Description
Type:
Testing Machine
Accuracy:
---
Application:
Auto Testing
Customized Support:
OEM, ODM, OBM
Power:
---
Protection Class:
IP65
Voltage:
220 V
Warranty:
1 Year
Test Standard:
ISO1133-2011, ASTM D1238
Test Methods:
MFR
Power:
AC220V±10% 50/60HZ
Display Resolution:
0.1℃
Highlight:
ISO 1133 melt flow index tester
,
ASTM D1238 MFI measuring instrument
,
plastic melt flow testing machine
ISO 1133 ASTM D1238 Melt Flow Index MFI Measuring Instrument MFI Tester Melt Flow Index Testing Machine
Discription:
Melt flow rate testing instrument can be used for ABS, polystyrene, polyethylene, polypropylene, polyamide, fiber resin, acrylate, POM, fluorine plastic, polycarbonate and other plastic materials, the melt flow rate (MFR) or the melt volume flow rate (MVR) to be determined.
Standard:
GB/T3682-2018,ISO1133-2011, ASTM D1238
Product Character:

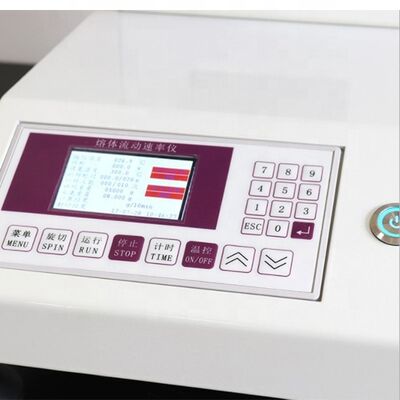

1.English LCD Touched Screen.
2.Hand automatic cutting material.
3.Double temperature control system, temperature control precision is more accurate, higher heating efficienc
4.Double imported sensors, more accurate temperature gradient from top to bottom, can be used independently, and improve the service life.
5.Cylinder for imports hartz alloying nitriding treatment, opening mould for carbon tungsten steel material, material reality.
6.Insulation barrels of sus304 stainless steel material for the whole, long-term high temperature does not rust.
7.Automatic calculation results, and print.
Test Methods:MFR Methods
Display Mode:English color touch screen display
Melt Flow Index / MFI Measuring Instruments and Test Equipment
Specification
Model
LR-A001-A
Barrel parameters
Inner hole 9.550±0.005mm
Pistons parameters
Piston head: 9.474±0.005mm
Outlet length
8.000±0.025mm
Paramters
Extrusion hole 1=2.095±0.005mm
Temperature parameter
With intelligent temperature control instrument, with four pairs of significant temperature setting control, PID parameters can be automatically set, precision up to ± 0.1 degree centigrade
Temperature range
Room Temperature~450degree centigrade
Temperature fluctuation
±0.2 ℃
Temperature uniformity
±1℃
Temperature display resolution
0.1℃
Display resolution
0.1℃
Maximum comsuption
< 600W
Time display resolution
0.1s
Weight parameters are as follows:
Weight accuracy
±0.5%
Basic configuration
A 0.325kg
B 1.2kg
C 2.16kg
D 3.8kg
E 5kg
F 10kg
G 12.5kg
H 21.6kg
Position detection
Loop distance from up and down
30mm
Control precision
± 0.1mm
Test flow control
Times of cutting the material
0~10 times
Material cutting interval
0~999s(set reference Table 2)
Control flow reaches the set temperature without volatility
