Product Details:
|
| Type: | Testing Machine | Accuracy Class: | High Accuracy |
|---|---|---|---|
| Accuracy: | ---- | Application: | Auto Testing, Laboratory Testing, Lab Testing |
| Customized Support: | OEM, ODM, OBM | Power: | --- |
| Protection Class: | Ip56 | Voltage: | 220 V |
| Warranty: | 1 Year | Equipment Size: | Length: 1000mm * Width: 610mm * Height:765mm |
| Highlight: | UV adhesive curing machine,UV light-sensitive coating tester,lab UV curing equipment |
||

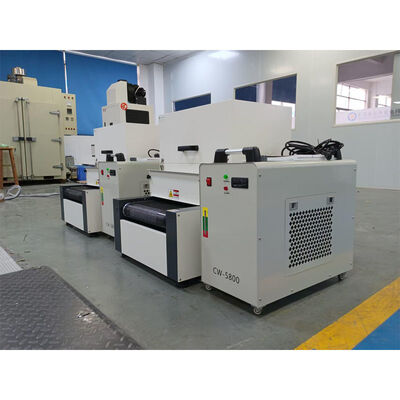

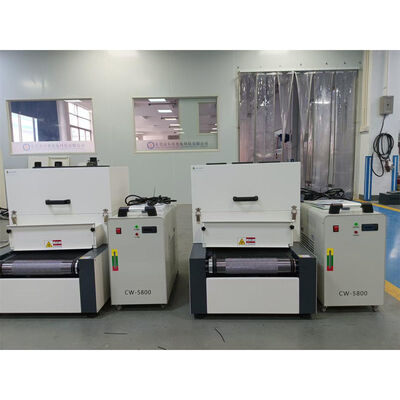

Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Equipment Application
This machine is suitable for the coating, bonding, and molding of UV light-sensitive coatings, inks, and adhesives, or for the instant curing and drying of the printed surfaces of various materials.
1) Printing: Widely used in screen printing, offset printing, letterpress printing, self-adhesive labels, metal nameplates, PC, PVC, ABS, PS, acrylic, terephthalate, glass, ceramics, electronic components, single-sided circuit boards, etc.
2) Coating: Wood surface bright coating, paper surface glossing, plastic floor tiles and PU leather surface glossing, optical fiber surface coating, etc.
3) Bonding: Bonding of CHIP components on circuit boards, various electronic components, glass bonding, bonding of liquid crystal sheets and terminal sealing adhesives.
4) Molding: Decorative colored plates and vessels, decorative accessories (buttons, hairpins, belt buckles, etc.)
Ultraviolet Curing Machine UV Light Curing Equipment Lab UV Adhesive Curing Device UV Light-sensitive Coating Test Machine
Technical Specification
|
Serial Number |
Project |
Specification |
Remarks |
|
1 |
Equipment model |
LR400 |
|
|
2 |
Equipment power supply |
AC220V |
|
|
3 |
Equipment size |

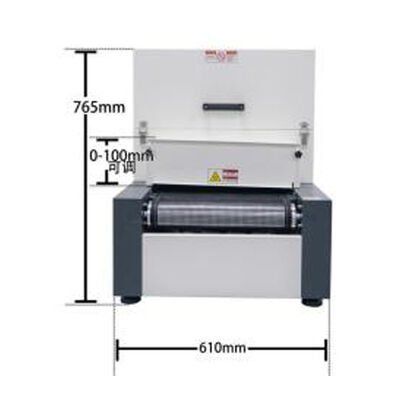

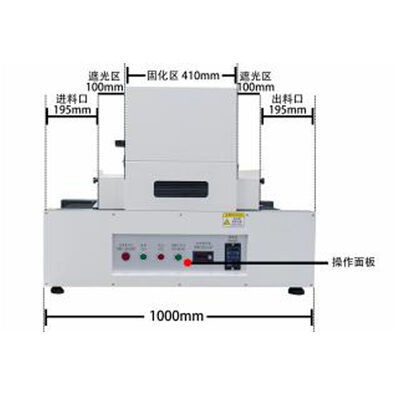

1. Length: 1000mm * Width: 610mm * Height: 765mm 2. Curing area: 410mm 3. Light-blocking area: 100mm 4. Feed inlet height: 195mm |
|
|
4 |
UV light source |
1. Light source type: UV LED 2. Light source peak wavelength: 395nm 3. Lamp power: 3000W 4. Light emission size: 400*100mm 5. Number of light sources: 1 group 6. Illumination method: Top illumination 7. Heat dissipation method: Water cooling |
|
|
5 |
UV power supply |
1,Mingwei / Jiali |
|
|
6 |
Transportation structure |
1. Transmission speed: 0.5 - 8 M/min 2. Transmission track: Teflon mesh belt |
|
|
7 |

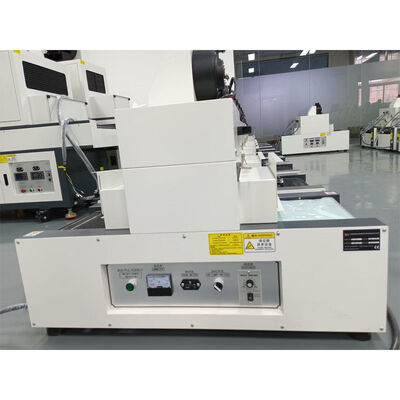

Control Panel |
1. Power indicator light * 1 2. Start button * 1 3. Stop button * 1 4. LED light switch * 1 5. Power regulator * 1 6. Speed regulator * 1 7. Life timer * 1 |
|
|
8 |
Heat dissipation method |
1.water-cooling |
Add water to cool,no need to use Refrigerant |
![]()
![]()
![]()
![]()
![]()
![]()
![]()
