IBoo Coating Oven Temperature Tracker Paint Coating Oven Temperature Profiler Furnace Temperature Tracking Instrument

Number of channels

4 to 16 channels are available for selection.

Sensor

K-type thermocouple

Precision

0.5 degrees

Thermal insulation box temperature resistance grade

300 degrees for 1 hour, 500 degrees for 1 hour, or 300 degrees for 4 to 6 hours

measuring range of the instrument

-200-1370℃

Memory

The extremely large memory can record 200,000 pieces of data, and the memory can store 16 sets of data.

Sampling rate

0.05,0.1,0.2,0.5,1s, 2s, 3s, 4s, 5s, 6s, 10s, 20s, etc.

Computer requirements

windows 98, 2000, XP,win7,win8,win10, etc.

Features of the instrument and software

1. It can be tested continuously for 20 times and the data can be downloaded once.

2. USB port, applicable to all computers.

3. The instrument charges itself during data download.

4. Standard voltage calibration, with reliable accuracy.

5. One-click operation, easy to learn and use.

6. Calculate the rising time and slope in multiple temperature segments.

7. Calculate the holding time above any temperature point.

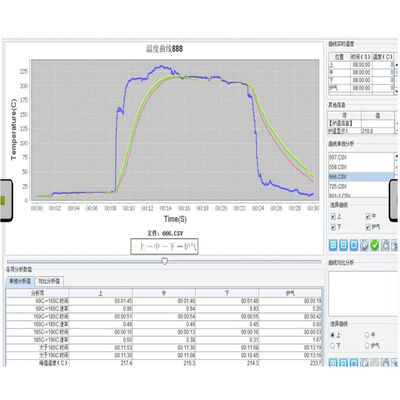

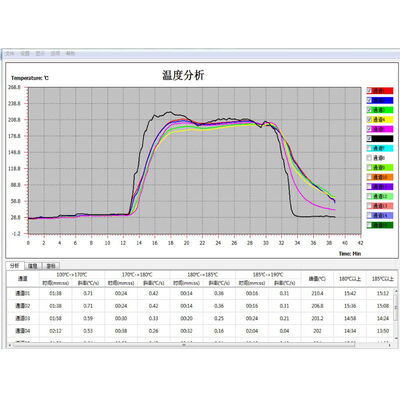

1. The software has an intelligent warning function. It can instantly determine whether the furnace temperature is within the qualified range based on the test curve.

2. It can capture any time period's curve for analysis.

3. The curve zooming function is more practical.

4. Any temperature horizontal line can be drawn on the curve.

5. Detailed report printing function is available.

6. The report can be saved as an image.

Insulation box

300 degrees, 60 minutes, size 10 x 14 x 28 cm

500 degrees, 60 minutes, size 12 x 15 x 28 cm

300 degrees, 6 hours, size 360 long, 270 wide, 175 high mm

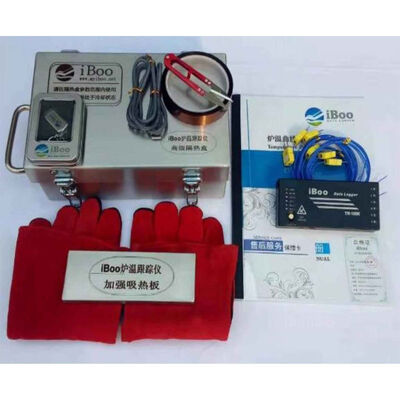

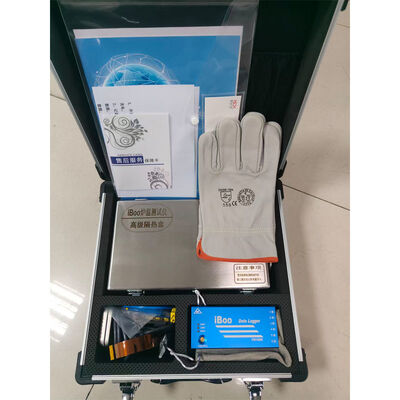

Standard configuration

l Temperature recorder

l Temperature measurement cables (adhesive, magnets, clips)

l Communication cables

l Data download and analysis software

l Scissors

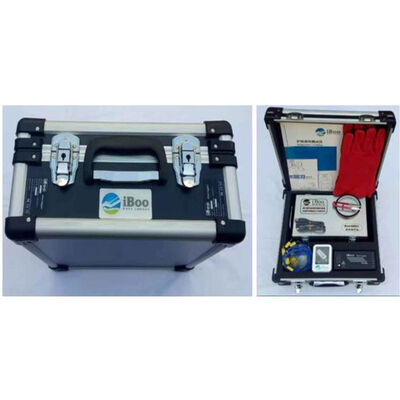

l Instrument box

l Certificate of Conformity

l Calibration Certificate of the Instrument upon Factory Delivery

l High-temperature Gloves

l Insulation Box

l Operating Manual

l High-temperature Tape
