Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Large Image : Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Equipment Size:	440420400mm
Weight:	60kg
Highlight:	laboratory three roll grinder , high efficiency three roller mill , three roll refiner with warranty

Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Product Introduction

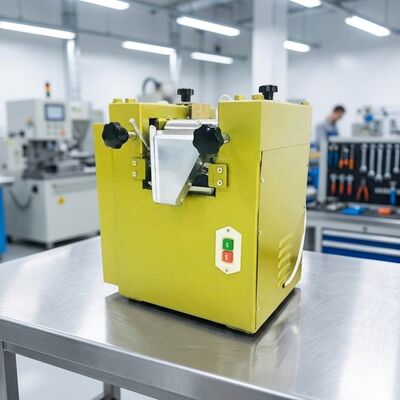

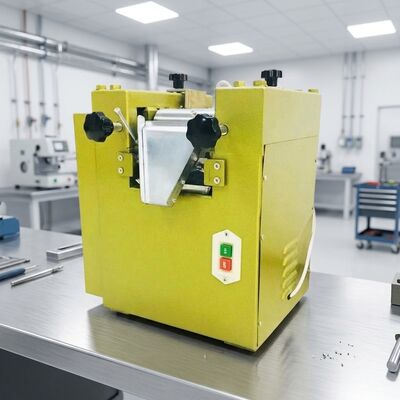

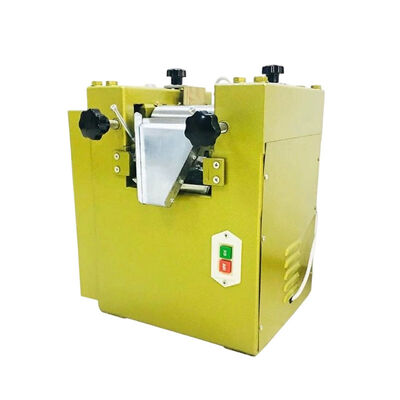

The three-roll grinding machine is mainly used for various paints, inks, pigments, plastics and other pastes. Especially for products with high viscosity and fine particle size requirements. This machine achieves the grinding effect through the mutual squeezing of the surfaces of the three horizontal rollers and the friction at different speeds.

Three-roll Grinder Triple Grinding Machine Laboratory Three Roll Mill High Efficiency Three Roller Mill Three Roll Refiner

Technical Specification

Model			S65	S100	S150	S200	S260		S315	SM405	SM405 longer
Roller diameter		mm	Ø 65	Ø 100	Ø 150	Ø 200	Ø 260		Ø 315	Ø 405	Ø 405
Roller work length		mm	125	250	300	500	695		755	810	1000
Roller rotate speed	Slow	Rotate/minute	32	28	28	19	19		19	15	15
	Middle speed	Rotate/minute	89	72	66	55	55		55	45	45
	Fast speed	Rotate/minute	250	185	152	155	155		155	135	135
motor power		kw	0.75	1.1	2.2	4	7.5		11	15	22
Granularity		u.m	3-18/3times
Efficiency		kg/h	5	30	60	100		180	250	350	430
Outside size		mm	440×420×400	680×600×700	820×800×920	1180×1120×980		1650×1350×1100	1720×1550×1180	2100×1950×1350	2290×1950×1350
Weight		kg	60	240	400	560		1850	2300	5000	5000
