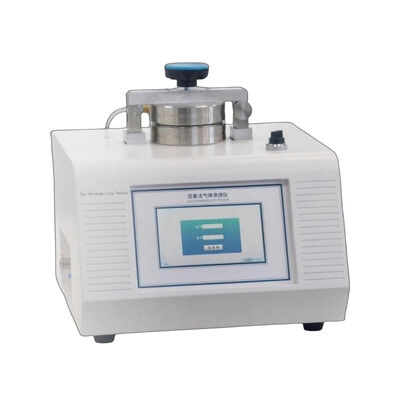

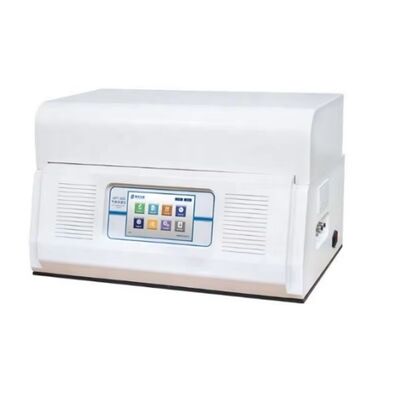

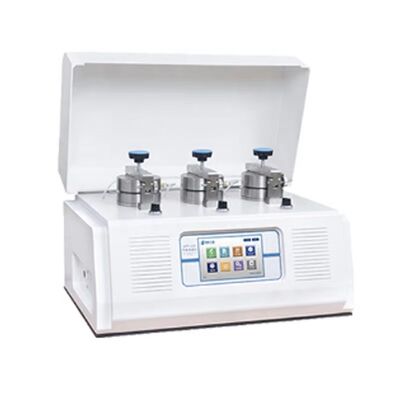

ASTM D1434 ISO 15105 Differential Pressure Gas Permeation Analyzer ISO 2556 JIS K7126 Laboratory Gas Permeability Rate Tester

GMP Permissions

1. GMP multi-level user access management

2. Four levels and above, with unlimited configurable levels

3. Operation logs, audit trails, electronic signatures, etc.

4. Database management system, compatible with user data management systems, supports multiple data format exports, and features a unique encrypted database backup (restore) technology. Supports general wired and wireless network backup, and integration with third-party software.

Differential Pressure Test Principle

The pre-treated sample is placed between the high-pressure chamber and the low-pressure chamber, and sealed tightly. First, the low-pressure chamber is evacuated, and then the entire system is evacuated. After a certain period of evacuation and reaching the specified vacuum level, the low-pressure chamber is closed, and a certain pressure of test gas is introduced into the high-pressure chamber, maintaining a constant pressure difference across the sample. Under the action of the pressure difference, the gas permeates from the high-pressure chamber to the low-pressure chamber. The system monitors the pressure change in the low-pressure chamber to calculate the gas permeation rate, gas permeability coefficient, solubility coefficient, and diffusion coefficient of the sample. Reference Standards:

GB/T1038, ISO 15105-1, GB/T 7755.1, ISO 2556, ASTM D1434, JIS K7126-1, YBB00082003

Features

Accurate Data

1. Original imported high-precision vacuum sensor with extremely high repeatability, accuracy, and stability

2. Original imported pipeline connection system and pneumatic control system ensure overall system sealing, with a sealing performance of up to 10^-9 std cm³/s

3. High-pressure chamber constant pressure maintenance system, supporting arbitrary setting of high-pressure chamber pressure within the range of 0.1~0.15 MPa

4. Wide-range, high-precision temperature control system to meet testing requirements under various test conditions

Intelligent Testing

1. One-button start, fully automatic testing

2. 7-inch high-definition LCD touch screen, no need to connect to a computer, intuitive content and easy operation

3. Pneumatic clamping of the sample in the test chamber, convenient and quick, ensuring that the sealing is not affected by human factors

4. Over-range alarm and automatic protection function

5. Power-off memory function to ensure data integrity in case of power failure

6. Supports three test modes: proportional mode, fuzzy mode, and time mode

7. Can simultaneously measure gas permeability, gas permeability coefficient, solubility coefficient, and diffusion coefficient of the sample

Data Processing

1. Test results support multi-format storage and data output; test reports support PDF and Word; test data supports Excel and CSV

2. Statistical analysis of single or grouped test results

3. ISP online control and upgrade function, allowing remote modification of test functions as required

4. Professional computer communication software for real-time display of tests, data analysis and processing, and data saving

5. The instrument is equipped with a USB interface and RS485 serial port to support data transmission

6. Can be connected to the LIMS laboratory management system
