Product Introduction

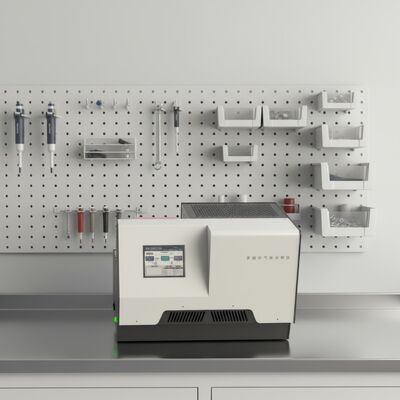

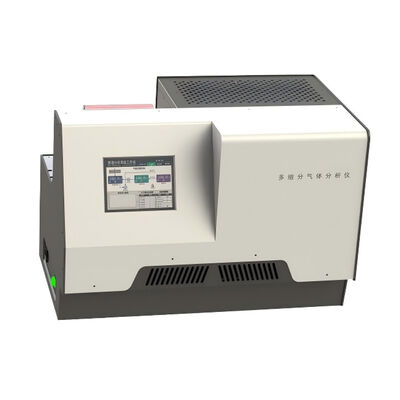

The LR-M530 is a compact, high-performance online gas analysis instrument capable of qualitative and quantitative analysis of various gases under atmospheric or sub-atmospheric pressure conditions.
The LR-M530 mainly consists of an inlet system, a vacuum system, an analysis system, and a data processing system.
While incorporating original German PEFFIER hardware (including quadrupole mass spectrometer, diaphragm pump, turbomolecular pump, sensors, etc., and PV MassSpec mass software), our company has also developed a touchscreen intelligent control system, enabling independent control of three temperature zones (T); it can be expanded to control and output online mixing ratios and flow rates of 1 to 4 gases in the inlet system.
The system's mass analysis range is 1–100 amu and 1–200 amu.
Application Areas
1. Materials Science
Material surface analysis: Gases and impurities adsorbed on material surfaces
2. Environmental Monitoring
Atmospheric composition analysis: such as VOCs, NOx, SO2, CO, hydrocarbons Water monitoring: dissolved gases in water, H2, O2, CO2, organic pollutants
3. Petrochemical Industry
Oil exploration and development: Hydrocarbons such as CH4, C2H6, C3H6, CO2, H2S, etc. Petrochemical product quality control: Analysis of the content of aromatic hydrocarbons, olefins, and other hydrocarbon compounds
Product Advantages
Modular design
Powerful software support, low detection limit.
1. Quadrupole mass spectrometer as the core detector, featuring low background noise and a detection limit of 1 ppm.
2. High-sensitivity ion source, using an iridium filament coated with iridium oxide, offering strong oxidation resistance and a lifespan of 3-5 years.
3. Dual protection of vacuum and current to prevent system malfunctions or sudden leaks.
4. Resolution of 0.5–2.5 amu, optimized signal intensity, and stability better than 3% Ar.
5. Bias voltage and field axis technology to enhance ion transmission and reduce background interference.
6. Molecular pump + foreline pump to create a dry, oil-free testing environment with excellent pumping capabilities for different gases.
7. Capillary split injection, injection temperature of 200℃, and adjustable split ratio (1–2 sccm).
8. High-vacuum analysis chamber with a baking temperature of 200℃.
9. Dedicated PV MassSpec software, easy to operate with a user-friendly interface.
10. 8-inch touchscreen system for flow ratio control and independent control of analysis chamber, capillary, and pipeline temperatures.
