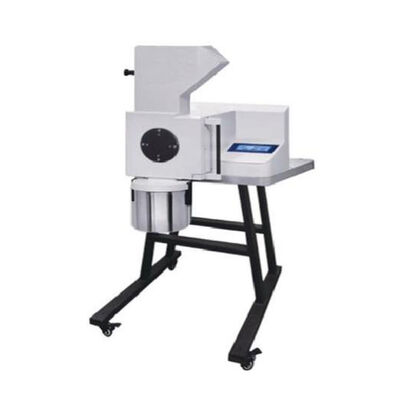

Cutting Grinder Cutting Grinding Mill Samples Pulverizing Machine Laboratory Touchscreen Homogenizing Equipment

Product Introduction

The cutting grinding mill is suitable for pulverizing and homogenizing samples of soft, medium-hard, tough, elastic, fibrous, and synthetic materials. Utilizing the principles of cutting and shearing, it gently and rapidly pulverizes samples. Its powerful 3kW drive expands its application range. When used in conjunction with an optional cyclone separator, it can process small quantities or lightweight samples.

Applications

1. Agriculture: Plants, roots, straw, rice straw, etc.

2. Chemicals and Plastics: PET prepolymer, plastic toys, polymer resins, rubber, etc.

3. Environment: Wood, cables, cardboard, electronic waste, leather, paper, etc.

4. Food and Feed: Animal feed, feed pellets, seasonings, dog chews, etc.

5. Geology and Metallurgy: Aluminum slag, lignite, non-ferrous metals, etc.

6. Medicine and Biology: Bones, traditional Chinese medicine, drugs, pharmaceutical products, etc.

Technical Features

1. LCD touchscreen operation, simple and quick parameter setting

2. 3kW drive, powerful cutting, wider application range

3. Equipped with a movable support, can be placed on a test bench or on the ground; the support has casters for easy movement

4. Equipped with a braking device and safety door control; the instrument will not start when the door is open, ensuring personal safety

5. Rapid grinding, low heat generation, suitable for pulverizing heat-sensitive samples

6. The door can be opened; the rotary blade and bottom sieve can be disassembled without tools, allowing for efficient grinding. The chamber is easy to clean, preventing sample cross-contamination.

7. It has a reverse function to ensure normal instrument operation.

8. The sample output size is controllable, with different aperture bottom sieves available.

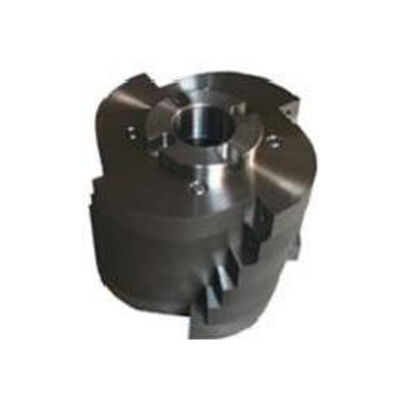

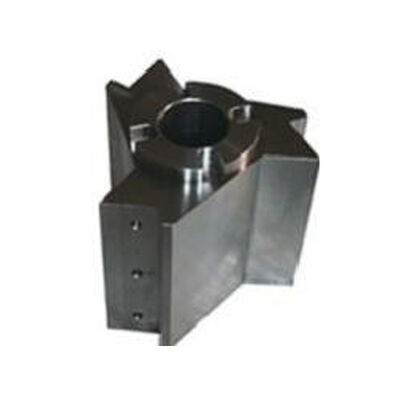

9. A wide range of accessories are available, including various sample inlet funnels, collection containers, rotary cutters, and bottom sieves.

Working Principle

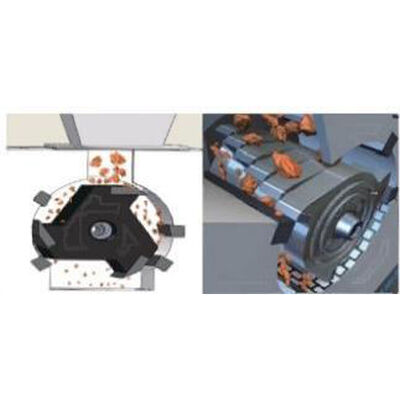

The sample enters the grinding chamber through the anti-splash sample inlet hopper. The sample is cut and pulverized by the shearing action between the rotating cutter and the fixed cutting edge. The sample output size depends on the aperture of the bottom sieve; a variety of bottom sieve specifications meet the needs of various samples.
