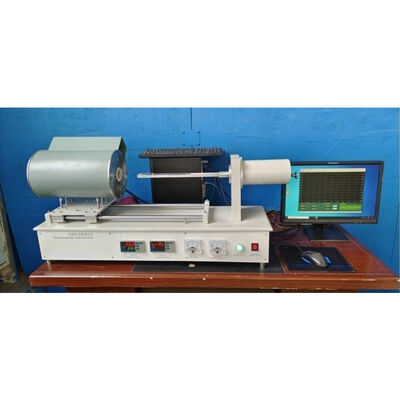

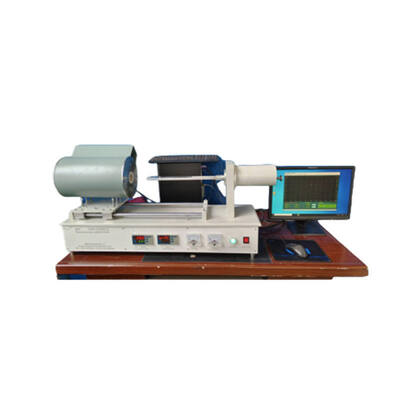

ISO 10545 ISO 7991 Thermal Expansion Coefficient Analyzer Glass High-Temperature Horizontal Heat Expansion Tester Machine

Large Image : ISO 10545 ISO 7991 Thermal Expansion Coefficient Analyzer Glass High-Temperature Horizontal Heat Expansion Tester Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 10545 ISO 7991 Thermal Expansion Coefficient Analyzer Glass High-Temperature Horizontal Heat Expansion Tester Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	2 KW
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Deformation Range:	±1.5 Mm
Detection Temperature:	Adjustable From Room Temperature To 1000℃	Test Frame Material:	High-temperature Resistance Wire
Power Supply:	220 V, 2 KW
Highlight:	ISO 10545 glass thermal expansion analyzer , high-temperature horizontal heat expansion tester , ISO 7991 lab test machine

ISO 10545 ISO 7991 Thermal Expansion Coefficient Analyzer Glass High-Temperature Horizontal Heat Expansion Tester Machine

Product Description

Product Introduction

This instrument is used to determine the expansion and contraction properties of metallic materials, ceramics, glass, glazes, rocks, concrete, graphite carbon materials, refractory casting materials, and other non-metallic materials such as silicone and plastics during high-temperature firing. The instrument references the following standards: GB/T3810.8-2016 and ISO 10545.8-1994 Determination of Linear Thermal Expansion of Ceramic Tiles; GB/T16920-2015 Determination of Average Linear Thermal Expansion Coefficient of Glass; ISO 7991-1987 Determination of Average Linear Thermal Expansion Coefficient of Glass; GB/T2572-2005 Test Method for Average Linear Expansion Coefficient of Fiber Reinforced Plastics; GB/T3074.4-2016 Determination of Thermal Expansion Coefficient (CTE) of Graphite Electrodes; and GB/T4339-2008 Determination of Characteristic Parameters of Thermal Expansion of Metallic Materials, etc.

ISO 10545 ISO 7991 Thermal Expansion Coefficient Analyzer Glass High-Temperature Horizontal Heat Expansion Tester Machine

Technical Specification

Detection Temperature	Adjustable from room temperature to 1000℃
Heating Rate	Adjustable from 0–20℃/min; microcomputer program temperature control; temperature control accuracy ±1℃
Deformation Range	±1.5 mm
Displacement Sensor	Sensitivity 0.1 µm, automatic range calibration
Calculation Function 1	Computer automatically calculates expansion coefficient, volume expansion and linear expansion
Calculation Function 2	Automatically calculates and compensates for the compensation coefficient; manual correction is also available
Sample Size	Φ(2~10)×50 mm, (2~10)×(2~10)×50 mm; square and round samples are both acceptable
Power Supply	220 V, 2 kW
System Function	Intelligent dilatometer connected to computer for automatic temperature control, data recording, storage and printing, including temperature-expansion coefficient curves. All test operations via computer interface, easy to operate, complete software suite provided
Test Frame Material	Quartz
Heating Element	High-temperature resistance wire

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
