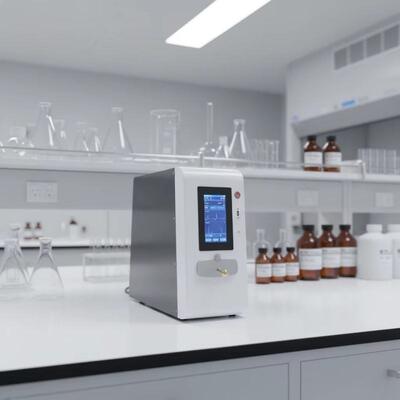

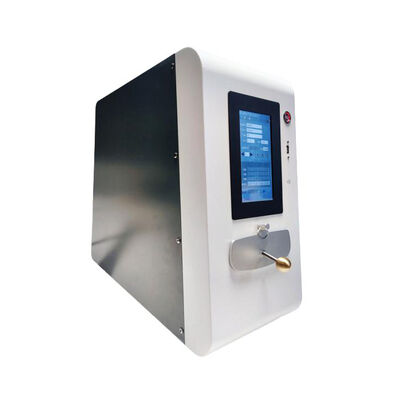

ISO 7686 Pipe Opacity Tester Plastics Pipes and Fittings Opacity Test Equipment Water Supply Pipes Opacity Test Machine

Instrument Overview

This instrument is used to test the opacity of plastic pipes and fittings (displaying results as a percentage). It replaces traditional methods for testing pipe opacity. Controlled by an industrial touchscreen, it features calibration, data analysis and calculation, and USB storage of test results. It is a device for measuring the opacity of water supply pipes or fittings exposed to visible light to prevent algae growth inside the pipes.

Standards Meet

GB/T 21300-2007 Plastic Pipes and Fittings—Determination of Opacity

GB/T 2410-2008 Transparent Plastics—Determination of Light Transmittance and Haze

GB/T 38008-2019 Thermoplastic Gate Valves

GB/T 37842-2019 Thermoplastic Ball Valves

GB/T 32018.1-2015 Impact-Modified Polyvinyl Chloride (PVC-M) Piping Systems for Water Supply—Part 1: Pipes

GB/T 32018.2-2015 Impact-Modified Polyvinyl Chloride (PVC-M) Piping Systems for Water Supply—Part 2: Fittings

GB/T 18742.1-2017 Polypropylene Piping Systems for Hot and Cold Water—Part 1: General

GB/T 18742.2-2017 Polypropylene Piping Systems for Hot and Cold Water Part 2: Piping Materials

GB/T 18742.3-2017 Polypropylene Piping Systems for Hot and Cold Water

Part 3: Fittings

ISO 7686:2005 Plastics pipes and fittings — Determination of opacity

Instrument Features

1. Employs a high-precision standard A-type parallel light source, with light waves strictly controlled within the 540–560 nm range;

2. The light flux acquisition system utilizes an industrial-grade high-precision light collector with strong anti-interference capabilities and a 24-bit analog-to-digital converter circuit, ensuring stable and reliable measurement results with a resolution of 0.01%;

3. The sample holder provides three positioning points for each sample and features voice prompts;

4. Color LCD touchscreen control and display, offering convenient operation and intuitive display;

5. Test data can be stored via USB flash drive for easy test recording;

6. Compact size, reasonable structure, space-saving design, stable performance, high efficiency, simple operation, and convenient maintenance.
