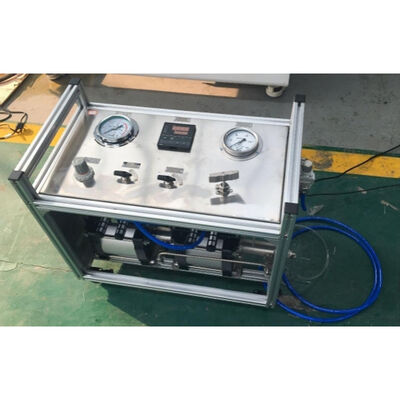

Portable Vehicle-Mounted Safety Valve Air Pressure Testing Bench Laboratory Automotive Safety Valve Pneumatic Tester

Overview

The piping system uses a non-welded connection. The test fluid system and drive fluid system are separated, allowing for diverse test media. Three different control methods are available: manual control, PLC control, and computer control. Test data is collected using a high-speed sampling card.

Equipment Features

1. The core pressurization equipment uses a Jinan Simingte booster pump, which can easily achieve arbitrary and controllable output pressure.

2. Advanced technology and reasonable structural design. It features small size, light weight, and an attractive appearance.

3. All pressure-bearing parts use standard parts from internationally renowned brands, with no welded connections, facilitating disassembly, ensuring a high safety factor, long service life, and easy maintenance.

4. Drive air pressure range: 0.1-0.8 MPa; and the output pressure is directly proportional to the drive air pressure.

5. Air consumption: 0.3-1 m³/min

6. Pressure testing range: 0-32 MPa, with the corresponding pressure selected according to the customer's actual needs. 7. Capable of staged test pressure, manually controlled by buttons.
