IEC 62368 IEC 60065 Household Appliance Stability Test Bench IEC 60601 IEC 60950 Household Electric Appliance Stability Tester

Large Image : IEC 62368 IEC 60065 Household Appliance Stability Test Bench IEC 60601 IEC 60950 Household Electric Appliance Stability Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-YZ25

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

IEC 62368 IEC 60065 Household Appliance Stability Test Bench IEC 60601 IEC 60950 Household Electric Appliance Stability Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220 V
Warranty:	1 Year	Product Name:	Household Appliance Stability Test Bench
Dial Size:	1500mm	Allowable Load Capacity:	Not Exceeding 180~200kg
Highlight:	IEC 62368 stability test bench , household appliance stability tester , IEC 60601 lab test machine

IEC 62368 IEC 60065 Household Appliance Stability Test Bench IEC 60601 IEC 60950 Household Electric Appliance Stability Tester

Product Description

Product Overview

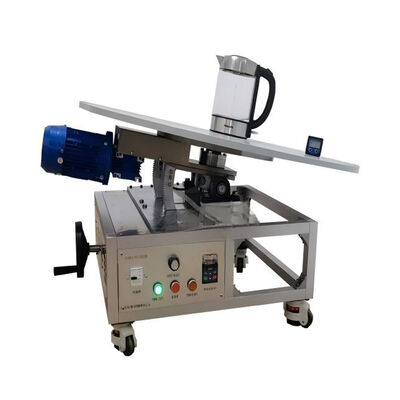

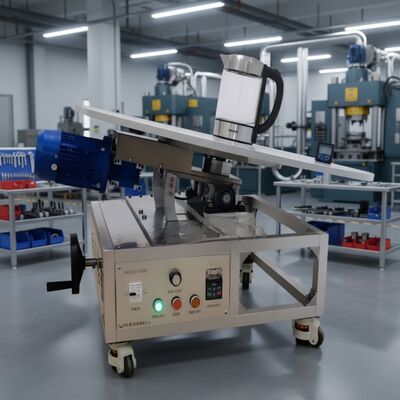

This equipment is designed to determine the stability of electrical appliances intended for use on a tabletop or floor, in accordance with IEC60335-1 Clause 20.1, IEC62368-1, IEC60065 Clause 19.1, IEC60601-1 Clause 24.1, and IEC 60950 Clause 4.1. The equipment includes a surface and a threaded spindle with a handwheel to adjust the tilt of the tabletop. The tilt angle can be adjusted from horizontal upwards to 30°.

Standard Equipment

tabletop, circular, made of A3 steel

base plate with hinges for the support frame and a motor for rotation

internally threaded spindle with a handwheel for adjusting the tilt angle of the tabletop relative to the horizontal plane, adjustable from horizontal up to 30°

tilt angle measuring instrument, mounted on the tabletop, to detect the tilt angle.

PIEC 62368 IEC 60065 Household Appliance Stability Test Bench IEC 60601 IEC 60950 Household Electric Appliance Stability Tester

Technical Specification

Dial size	Φ 1500mm
Rotation mode	Motor-driven, rotation speed 1 revolution/minute
Tilt angle	0~30±1°, adjustable manually and displayed via an electronic angle indicator (resolution 0.1°)
Allowable load capacity	Not exceeding 180~200kg
