Air-Cooled Heat Dissipation Quenching Oil and Water Tank High-speed Stirring Laboratories Small Parts Quenching Tester

Large Image : Air-Cooled Heat Dissipation Quenching Oil and Water Tank High-speed Stirring Laboratories Small Parts Quenching Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Air-Cooled Heat Dissipation Quenching Oil and Water Tank High-speed Stirring Laboratories Small Parts Quenching Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	Approximately 2.5 KW
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Total Equipment Power:	Approximately 2.5 KW
Oil Tank Material:	304 Stainless Steel	Stirring Power:	120 W
Overall Dimensions:	Approximately 1000800750 Mm
Highlight:	air-cooled quenching oil tank , high-speed stirring quenching tester , lab parts heat dissipation tank

Air-Cooled Heat Dissipation Quenching Oil and Water Tank High-speed Stirring Laboratories Small Parts Quenching Tester

Product Description

Product Introduction

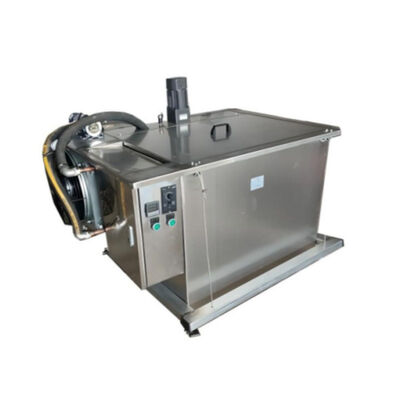

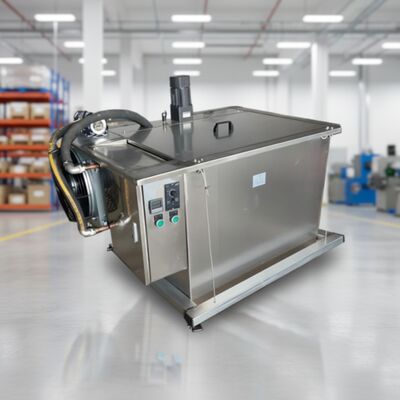

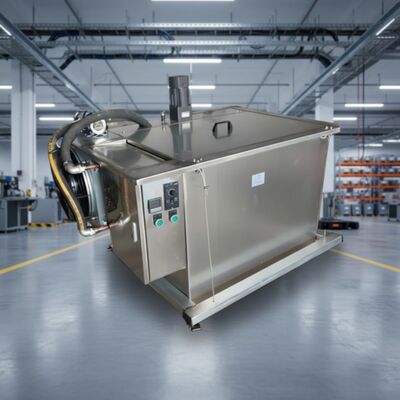

This machine is primarily used for quenching tests of small parts in laboratories. It features quenching liquid temperature display, automatic temperature control, and high-speed stirring. The quenching tank is made of thickened stainless steel plates, ensuring sturdiness and an aesthetically pleasing design. A high-speed stirrer is installed at the top of the quenching tank to quickly dissipate heat from the workpiece surface, accelerating cooling time, and ensuring uniform quenching hardness. The quenching tank is equipped with an oil tank cover for fire extinguishing and reducing oil surface combustion during quenching.

AAir-Cooled Heat Dissipation Quenching Oil and Water Tank High-speed Stirring Laboratories Small Parts Quenching Tester

Technical Specification

Internal dimensions of the oil tank	800700700 mm
Working temperature	10–60 ℃
Quenching weight	0–50 KG
Temperature control method	Digital display automatic heating
Heating tube power	2 KW
Cooling method	Air-cooled radiator + natural cooling
Stirring power	120 W
Stirring speed	0–450 r/min
Quenching medium	Special quenching water or oil
Oil tank material	304 stainless steel
Total equipment power	Approximately 2.5 KW
Overall dimensions	Approximately 1000800750 mm
