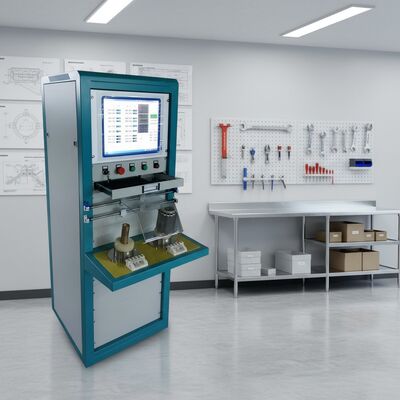

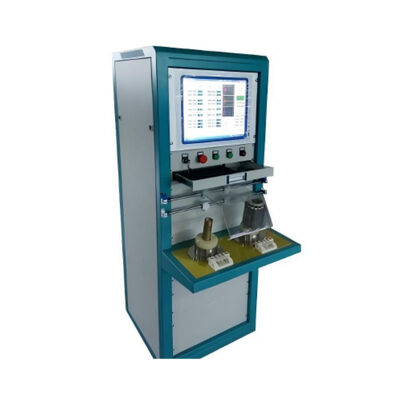

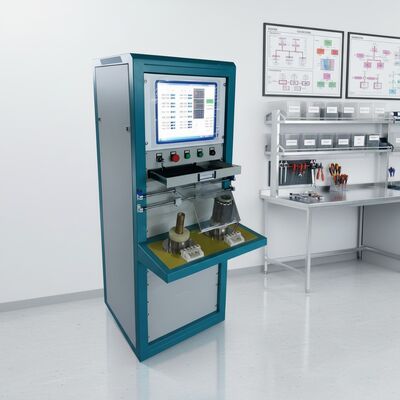

Intelligent Small and Medium-Sized Motor Stator Testing System Motor Stators Parameters Tester Safety Performance Analyzer

Overview

This system is mainly used for testing the safety performance, rotation direction, and other stator parameters of various single-phase and three-phase motor stators. It features quick clamping and completes all parameter tests in one go. The system uses industrial computer centralized control and boasts high stability, compact size, high speed, and high efficiency.

Test Items

Withstand voltage current, insulation resistance, DC low resistance, inter-turn insulation, inductance (optional), rotation direction, etc.

Test Features

1. Uses industrial computers for rapid data acquisition, allowing unlimited storage of test data, categorized by date, model, etc., for easy retrieval.  It has a USB storage interface for convenient data copying and a wired interface with a printer for quick data printing.  It is equipped with our company's exclusively developed dedicated software, featuring a reasonable interface layout and simple operation.

2. Features real-time monitoring of ambient temperature, and automatically converts resistance measurement results to standard environmental conditions, ensuring consistency and accuracy of measurements.

3. The voltage has an automatic correction function, unaffected by external power grid or voltage regulator fluctuations, ensuring the accuracy of test data.

4. The testing system has an automatic numbering function, and can also accept manual input or barcode scanner input.
