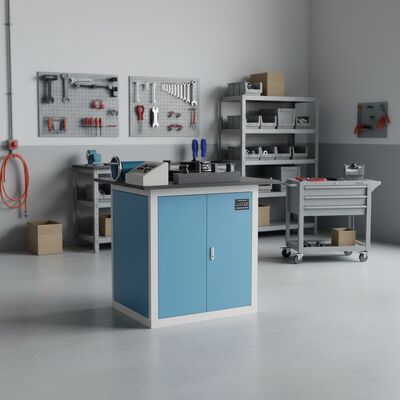

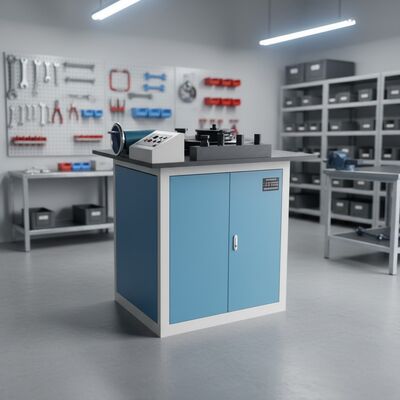

Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment Lab

Large Image : Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment Lab

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment Lab

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	1.5 KW
Protection Class:	Ip56	Voltage:	380 V
Warranty:	1 Year	Motor Power:	1.5 KW
Machine Dimensions:	12001000960 Mm	Machine Weight:	1600 Kg
Power Supply:	Three-phase 380 V, 1.5 KW
Highlight:	Rebar bending testing machine for steel bars , Steel bar bending test equipment lab , Forward reverse planar bending tester

Rebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment

Product Description

Product Description

The rebar bending testing machine is a specialized equipment for performing forward and reverse planar bending tests on steel bars. The technical parameters and specifications of this equipment comply with the relevant provisions of GB/T1499.2-2007 "Steel for Reinforced Concrete - Part 2: Hot-rolled Ribbed Steel Bars" and YB/T5126-2003 "Test Methods for Bending and Reverse Bending of Steel Bars for Reinforced Concrete". It is widely used in metallurgy, machinery manufacturing, construction, engineering supervision, and technical quality supervision units.

This product features significant improvements in accessory matching, safety limit switches, replacement of wear parts, and extending the overall service life of the machine.

WRebar Bending Testing Machine Steel Bars Forward and Reverse Planar Bending Tester Steel Bar Bending Test Equipment

Technical Specification

Rebar bending diameter range	Φ6–40 mm
Forward bending angle	0°–180° (arbitrarily set)
Reverse bending angle	0°–25° (arbitrarily set)
Working disc rotation speed	≤3.7 r/min
Roller center distance	165 mm
Working disc diameter	Φ580 mm
Motor power	1.5 kW
Standard bending die set	Included
Machine dimensions	1200×1000×960 mm
Machine weight	1600 kg
Power supply	Three-phase 380 V, 1.5 kW
