Oil Seal Mud and Water Property Testing Machine Tester Oil Sealing Mud Water Resistance Test Equipment

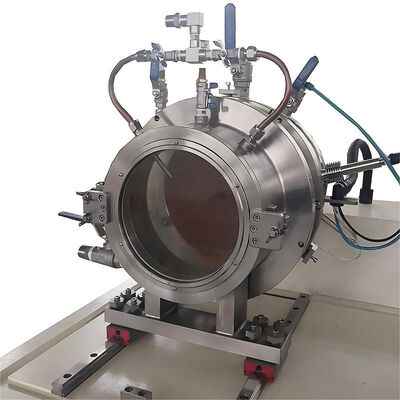

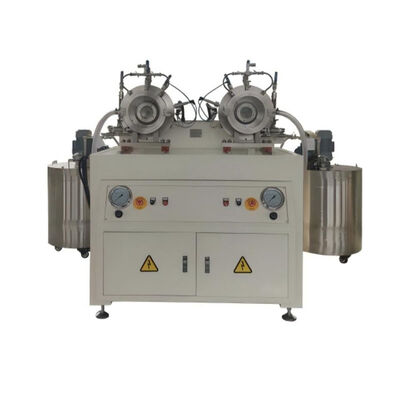

Large Image : Oil Seal Mud and Water Property Testing Machine Tester Oil Sealing Mud Water Resistance Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Oil Seal Mud and Water Property Testing Machine Tester Oil Sealing Mud Water Resistance Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	380 V
Warranty:	1 Year	Heater:	2 KW*2
Pressure Range:	0~0.03 MPa	Power Supply Voltage:	AC380V Three-phase Four-wire System (neutral Wire Required) ±10% 50Hz
Mud And Water Tank:	Room Temperature~40℃
Highlight:	oil seal mud water tester , oil sealing resistance test equipment , lab test machine for seals

Oil Seal Mud and Water Property Testing Machine Tester Oil Seal Mud Water Resistance Test Equipment

Product Description

Overview

The oil seal mud and water performance testing machine is suitable for testing and researching the sealing performance of various rotary oil seals. It can test the sealing performance of oil seals against oil fluid alone, or simultaneously test the sealing performance of oil seals against both oil fluid and mud and water, shortening the testing cycle and reducing testing costs. The oil seal is installed on the testing machine, and the main shaft rotates at a certain speed. After a certain period of operation, the machine observes whether the oil seal leaks and the degree of damage to the oil seal lip. The test shaft can rotate in both forward and reverse directions.

This machine has a reasonable structure, novel design, high degree of automation, computer control, and convenient operation.

BOil Seal Mud and Water Property Testing Machine Tester Oil Seal Mud Water Resistance Test Equipment

Technical Specification

Main shaft speed	Infinitely variable speed, range 100 r/min~6000 r/min
Main shaft runout error	Less than ±0.03 mm
Offset adjustment range	0~1 mm
Testable oil seal shaft bore range (single-lip oil seal)	Φ7~200 mm
Motor power	5.5 kW×2
Water pump	0.37 kW×2
Heater	2 kW×2
Pressure range	0~0.03 MPa
Temperature range	Test drum: Room temperature~120℃
Mud and water tank	Room temperature~40℃
Power supply	AC380V three-phase four-wire system (neutral wire required) ±10% 50Hz
