ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment Lab Test Mac

Large Image : ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment Lab Test Mac

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment Lab Test Mac

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Lifting Cylinder Stroke:	300 Mm
Working Air Pressure:	0.4 MPa	Overall Dimensions:	1330 Mm940 Mm1820 Mm
Power Supply:	AC220V±10% 50Hz 5kW
Highlight:	ISO 815 low-temperature compression set tester , vulcanized rubber compression set testing machine , lab test machine for rubber compression

ISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment

Product Description

Overview

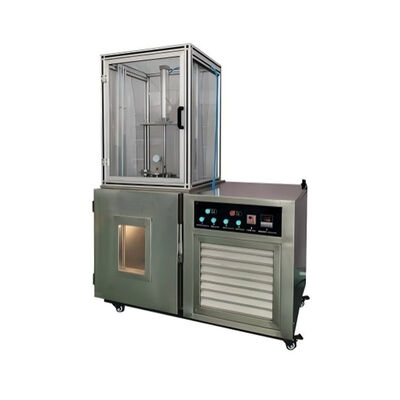

This instrument is primarily used to determine the compression set of vulcanized rubber under low-temperature conditions. It is suitable for use in research institutes, factories, schools, and research units. This machine complies with the requirements of GB/T 7759.2-2014/ISO 815-2:2008 "Vulcanized rubber or thermoplastic rubber — Determination of compression set — Part 2: At low temperatures".

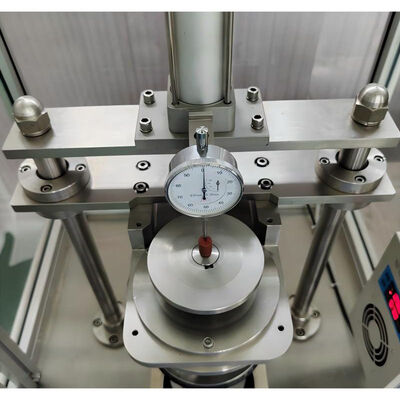

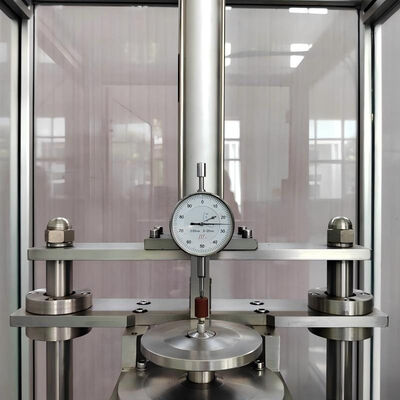

The machine mainly consists of a low-temperature chamber, a pneumatic lifting system, and a testing device. The low-temperature chamber provides refrigeration with high temperature control accuracy, replacing the earlier dry ice cooling method, making it convenient and practical.

OISO 815 Low-Temperature Compression Set Testing Machine Vulcanized Rubber Compression Set Testing Equipment

Technical Specification

Temperature Range	-70℃~Room Temperature
Temperature Uniformity	≤2℃ (under no load)
Lifting Cylinder Stroke	300 mm
Working Chamber Dimensions	450 mm×400 mm×550 mm (L×W×H)
Working Air Pressure	0.4 MPa
Power Supply	AC220V±10% 50Hz 5kW
Overall Dimensions	1330 mm×940 mm×1820 mm
