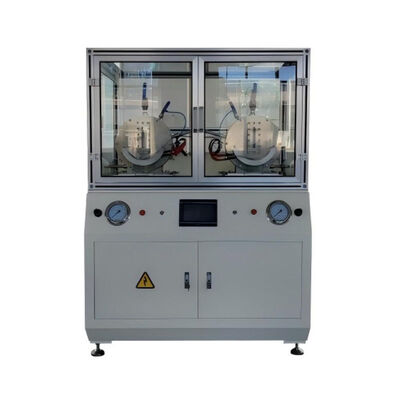

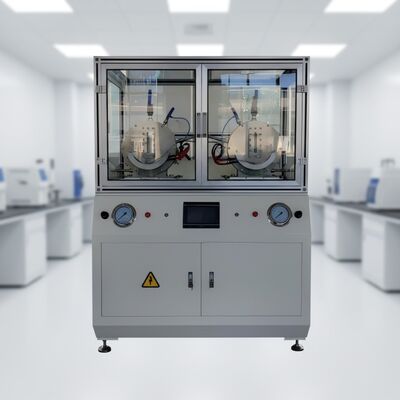

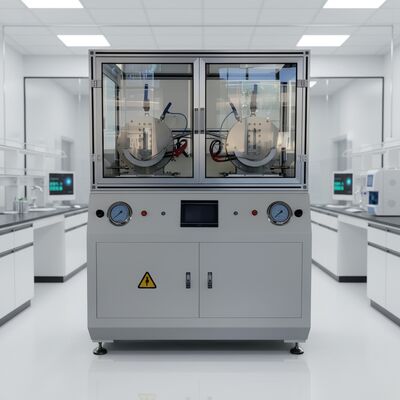

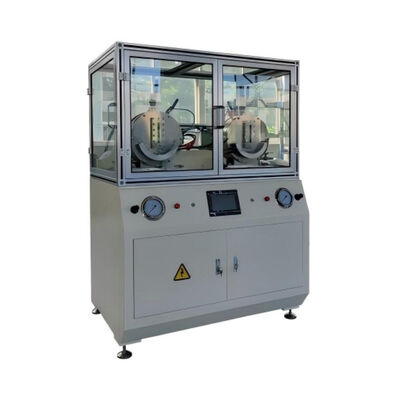

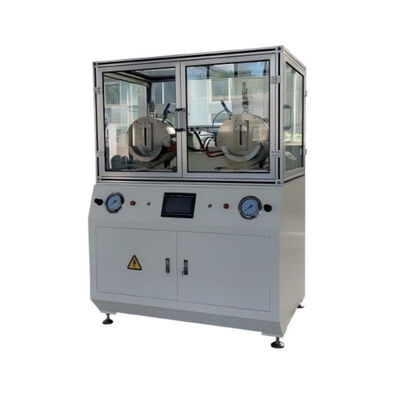

Oil Seal Rotary Performance Testing Machine Laboratory Rotary Oil Sealing Performance Test Equipment

Large Image : Oil Seal Rotary Performance Testing Machine Laboratory Rotary Oil Sealing Performance Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Oil Seal Rotary Performance Testing Machine Laboratory Rotary Oil Sealing Performance Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Main Shaft Speed:	500 R/min ~ 15000 R/min
Main Shaft Runout Error:	≤ ±0.03 Mm	Power Supply:	AC380V Three-phase Five-wire System
Pressure Range:	0~0.03 MPa
Highlight:	rotary oil seal testing machine , oil sealing performance test equipment , laboratory rotary seal test machine

Oil Seal Rotary Performance Testing Machine Laboratory Rotary Oil Sealing Performance Test Equipment

Product Description

Overview

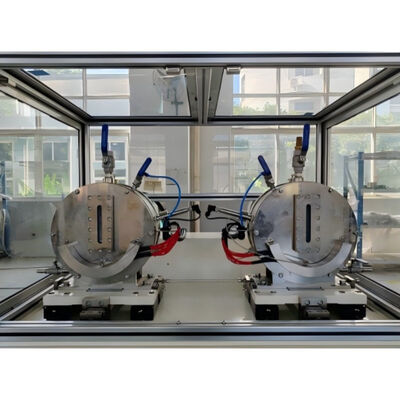

The oil seal rotary performance testing machine utilizes a Siemens programmable control system. It is suitable for testing and researching the sealing performance of various rotary oil seals. The oil seal is installed on the testing machine, and the main shaft rotates at a certain speed. After a certain period of operation, the machine observes whether the oil seal leaks. Two oil seals can be tested at a time, and the test shaft can rotate in both forward and reverse directions.

This machine has a reasonable structure, novel design, good starting performance, wide speed range, large starting torque, low noise, and convenient operation.

IOil Seal Rotary Performance Testing Machine Laboratory Rotary Oil Sealing Performance Test Equipment

Technical Specification

Main shaft speed	500 r/min ~ 15000 r/min
Main shaft runout error	≤ ±0.03 mm
Shaft center offset adjustment range	0~5 mm (If the speed > 6000 r/min, the shaft center offset adjustment should not be too large)
Testable oil seal shaft bore range (single-lip oil seal)	Φ7 mm ~ Φ200 mm (Note: Maximum test shaft diameter at 15000 r/min is Φ60 mm)
Motor power	11 kW x 2
Pressure range	0~0.03 MPa
Temperature range	Room temperature ~ 120℃
Power supply	AC380V three-phase five-wire system (must have neutral and ground wires) ±10% 50Hz
