Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment

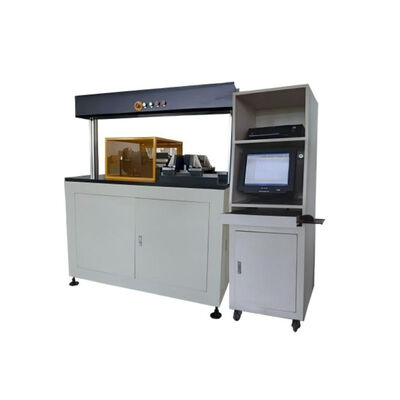

Large Image : Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Maximum Torsional Angle:	±15°
Set Test Cycles:	0-9999999 Cycles	Power Supply Voltage:	AC 220 V±10% 50 Hz 1 KW
Dimensions:	1675 Mm * 820 Mm * 1660 Mm
Highlight:	bushing torsional fatigue testing machine , automotive elastic bushings durability tester , elastic bushing fatigue test equipment

Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment

Product Description

Overview

The bushing torsional fatigue testing machine is used to simulate the durability and fatigue testing of automotive elastic bushings under torsional and radial pressure. It is a new type of elastic bushing torsional fatigue testing machine. Controlled by computer software, it can perform both fatigue and static stiffness tests. It is suitable for testing the fatigue durability performance of various automotive bushings in the rubber, automotive, and research industries. It features an aesthetically pleasing design, convenient operation, and high reliability.

Bushing Torsional Fatigue Testing Machine Automotive Elastic Bushings Durability Tester Elastic Bushing Fatigue Test Equipment

Technical Specification

Maximum Normal Pressure	5000 N
Maximum Torque	50 N·m
Maximum Torsional Angle	±15°
Torsional Speed	0–90 cycles/minute
Motor Power	0.4 kW (may vary depending on material strength)
Set Test Cycles	0–9999999 cycles
Power Supply Voltage	AC 220 V±10% 50 Hz 1 kW
Dimensions	1675 mm × 820 mm × 1660 mm
