Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber

Large Image : Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	---
Protection Class:	Ip56	Voltage:	380 V
Warranty:	1 Year	Test Chamber Runout Error:	≤0.03 Mm
Shaft Center Offset Adjustment Range:	0~2 Mm	Pressure Range:	0~0.05 MPa
Power Supply:	AC380V Three-phase Four-wire System (neutral Wire Required) ±10% 50Hz
Highlight:	oil seal dynamic testing machine , oil seal rotary test equipment , oil seal performance test chamber

Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber

Product Description

Features and Applications

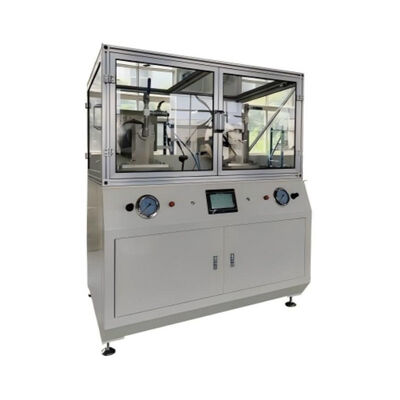

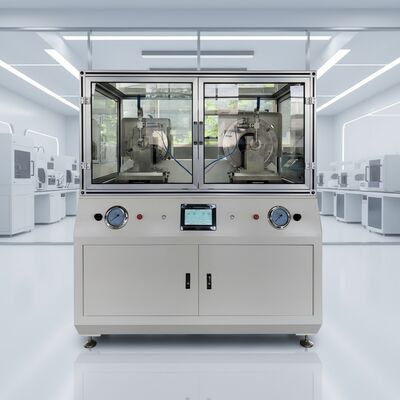

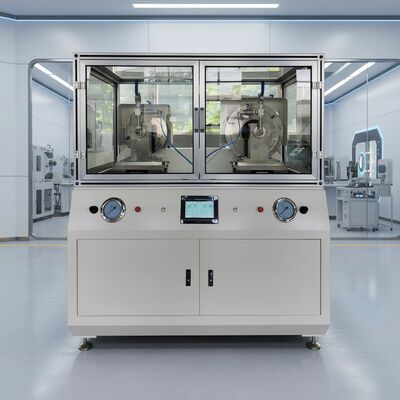

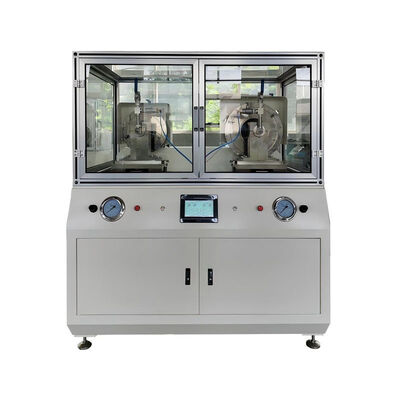

The oil seal dynamic testing machine is suitable for testing and researching the sealing performance of various rotary oil seals. The oil seal is installed on the test chamber, and the main shaft drives the test chamber to rotate at a certain speed. After a certain period of operation, it is observed whether the oil seal leaks. Two oil seals can be tested at a time.

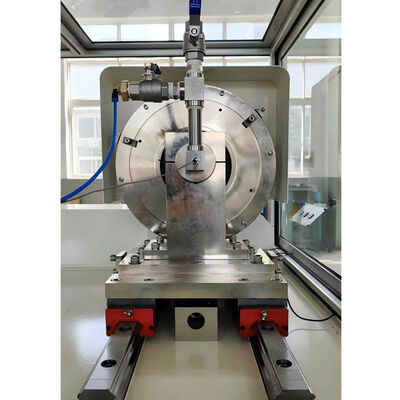

The test shaft of this machine moves back and forth on high-precision linear guides, ensuring high positioning accuracy. A multi-groove belt drive is used between the motor and the main shaft. The oil seal lip temperature is measured by an infrared thermometer. For safety, the equipment will stop running if the protective glass door is opened during the test.

Oil Seal Dynamic Testing Machine Oil Seal Rotary Dynamic Testing Equipment Oil Seal Performance Test Chamber

Technical Specification

Main shaft speed	50 r/min ~ 6000 r/min (customizable, up to 30000 rpm)
Test chamber runout error	≤0.03 mm
Shaft center offset adjustment range	0~2 mm
Left shaft tooling outer diameter	Φ250 mm (customizable)
Right shaft tooling outer diameter	Φ350 mm (customizable)
Motor power	5.5 kW x 2
Pressure range	0~0.05 MPa
Power supply	AC380V three-phase four-wire system (neutral wire required) ±10% 50Hz
