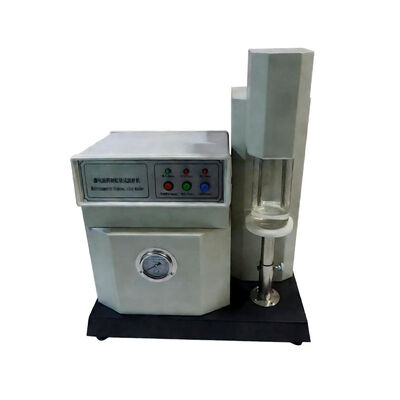

Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester

Large Image : Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY
Model Number:	LR-G141

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	150W
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Product Name:	Intelligent Siphon Sand Washing Machine (Single Channel)
Intermediate Program Settling Time:	0.5-1 Min
Highlight:	single channel sand washing machine , siphon type sand washer , sand clay content tester

Single Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester

Product Description

Features and Functions

This instrument is used to determine the percentage of clay content in raw or used sand. It is an automated device controlled by a microcomputer, following the manual clay removal procedure. The instrument adds automatic timed stirring, reset, and manual interruption and drainage functions. The main components, the flushing and suction pipes, are resistant to acid and alkali corrosion, preventing sand particles (especially coal dust sand) from adhering and affecting accuracy. The controller is housed in a luxurious aluminum alloy casing, which can be easily detached for maintenance. The structure is simpler, operation is convenient, and the test results are stable, improving efficiency.

PvSingle Channel Intelligent Siphon Sand Washing Machine Siphon Type Sand Washer Raw or Used Sand Clay Content Tester

Technical Specification

Settling Time	10 min ± 10 s (2 times) 5 min ± 5 s (n times)
Intermediate Program Settling Time	0.5–1 min
Program Control	Automatic flushing → Siphoning (according to the standard method: GB/T2684-2009)
Siphon Outlet Height from Water Surface	100 mm
Siphon Outlet Distance from Cup Bottom	35 mm
