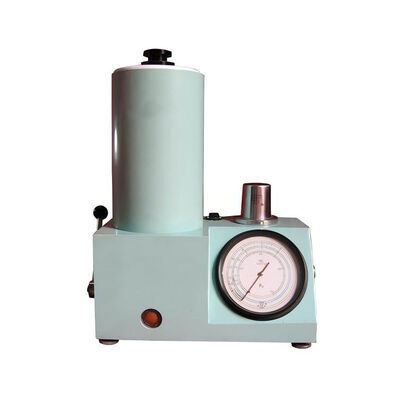

High Efficiency Direct-Reading Permeability Tester Dry and Wet States Molding and Core Sand Permeability Test Machine

Large Image : High Efficiency Direct-Reading Permeability Tester Dry and Wet States Molding and Core Sand Permeability Test Machine

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

High Efficiency Direct-Reading Permeability Tester Dry and Wet States Molding and Core Sand Permeability Test Machine

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	150W
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Sample Standard (Diameter * Height):	50 * 50 Mm
Gas Bell Capacity:	0-1000-2000 Ml	Gas Generation Pressure:	100 Mm Water Column
Dimensions (Length * Width * Height):	425 * 225 * 495 Mm
Highlight:	direct-reading permeability tester , dry wet sand permeability machine , core sand permeability test machine

High Efficiency Direct-Reading Permeability Tester Dry and Wet States Molding and Core Sand Permeability Test Machine

Product Description

Function Description

This instrument is used to measure the permeability of molding and core sand in both dry and wet states.

High Efficiency Direct-Reading Permeability Tester Dry and Wet States Molding and Core Sand Permeability Test Machine

Technical Specification

Sample Standard (Diameter × Height)	50 × 50 mm
Gas Bell Capacity	0–1000–2000 ml
Gas Generation Pressure	100 mm water column
Air Vent Specifications	Large hole: 1.5 mm Small hole: 0.5 mm
Micromanometer Pressure Measurement Range	100 mm water column
Micromanometer Permeability Measurement Range	Large hole: 50–2450 Small hole: 0–50
Dimensions (Length × Width × Height)	425 × 225 × 495 mm
