Methylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester

Large Image : Methylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Methylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester

Description

Type:	Testing Machine	Accuracy Class:	High Accuracy
Accuracy:	----	Application:	Auto Testing, Laboratory Testing, Lab Testing
Customized Support:	OEM, ODM, OBM	Power:	150W
Protection Class:	Ip56	Voltage:	220V Electrical Equipment
Warranty:	1 Year	Stirring Speed:	1400 R.p.m.
Burette Graduation Accuracy:	± 1%	Timer Control Range:	0-15 Min
Burette Capacity:	50 Ml
Highlight:	methylene blue clay tester , laboratory molding sand analyzer , bentonite content test machine

Methylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester

Product Description

Product Introduction

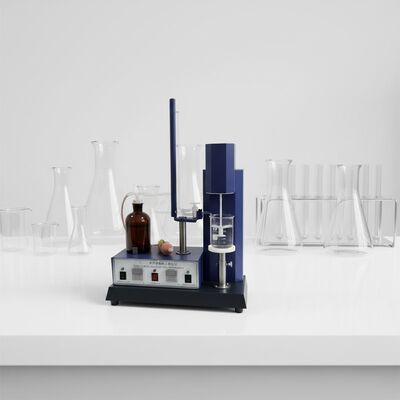

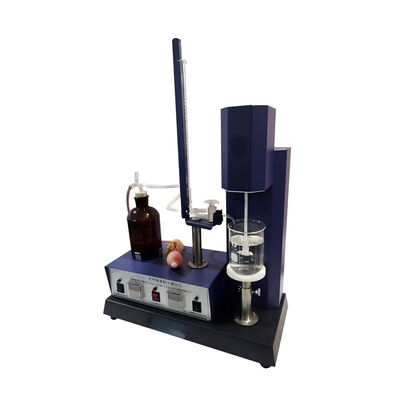

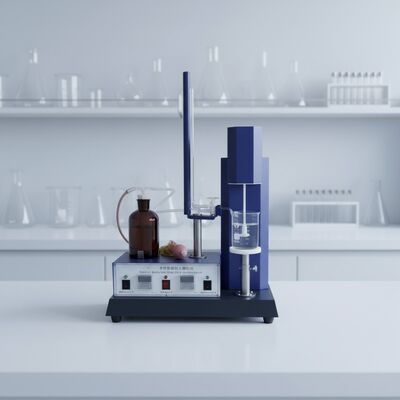

Used for determining the methylene blue adsorption capacity of bentonite and the effective bentonite content in molding sand. Includes sample preparation device and test measurement device. Utilizes ultrasonic dispersion and mechanical stirring to ensure sufficient contact between the clay sample and methylene blue dye, and uses qualitative filter paper for drop testing. Requires accurate titration, no dripping, and simple operation.

PMethylene Blue Clay Analyzer Laboratory Molding Sand Effective Bentonite Content Test Machine Methylene Blue Clay Tester

Technical Specification

Burette capacity	50 ml
Burette graduation accuracy	± 1%
Timer control range	0–15 min
Stirring speed	1400 r.p.m.
Ultrasonic disperser	40±2 kHz
Cleaning tank dimensions (LWH)	150140100 mm

Tag:

Contact Person: Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
